Mfr Part #:

WR9QE1500CCPCIMNAR6B

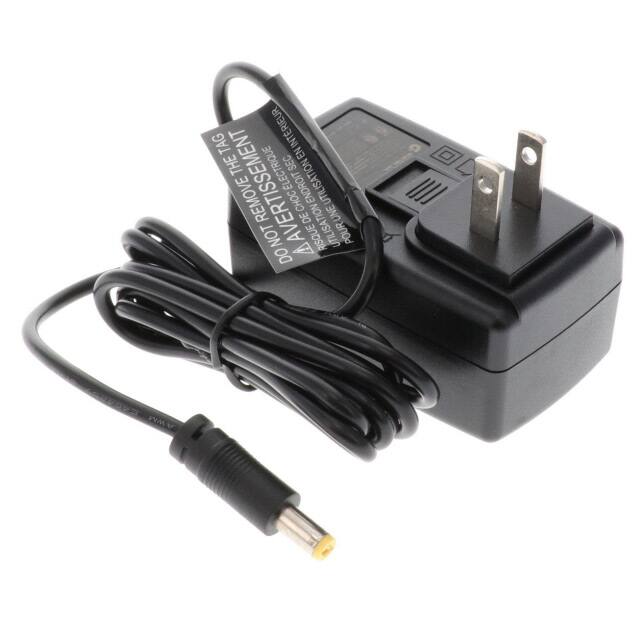

The GlobTek, Inc. WR9QE1500CCPCIMNAR6B is an AC/DC wall mount adapter delivering 18W of power. It provides a 12V output at 1.5A.

Stock on Request

WR9QE1500CCPCIMNAR6B Description

Short technical summary and product information.

This AC/DC wall mount adapter from GlobTek, Inc., part number WR9QE1500CCPCIMNAR6B, is designed for reliable power conversion. It delivers a 12V output with a maximum current of 1.5A, providing a total power of 18W. The adapter meets Level VI and CoC Tier 2 efficiency standards, ensuring energy-conscious operation.

Featuring a compact wall mount (Class II) form factor, it utilizes a multi-blade input connector, sold separately, and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm). The operating temperature range is -10°C to 40°C. Its dimensions are 74.0mm x 43.5mm x 36.8mm.

The adapter is suitable for various applications including Household Appliances, ITE (Commercial), and Medical use. It complies with numerous international standards, including 60335-1, 60601-1-11, 60601-1-2, and 62368-1, and carries approvals from agencies like CB, CE, cETLus, and ETL.

WR9QE1500CCPCIMNAR6B Quick Information

Product Type: AC DC Desktop, Wall Adapters

Canonical Name: GlobTek, Inc. WR9QE1500CCPCIMNAR6B AC/DC Wall Mount Adapter

WR9QE1500CCPCIMNAR6B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

WR9QE1500CCPCIMNAR6B Features

18W AC/DC wall mount power adapter.
Provides 12V output at 1.5A.
Meets Level VI and CoC Tier 2 efficiency.
Suitable for commercial and medical applications.
Compact wall mount (Class II) form factor.

WR9QE1500CCPCIMNAR6B Applications

Powers household appliances reliably.
Ideal for commercial ITE equipment.
Suitable for medical device integration.
Designed for international power requirements.

WR9QE1500CCPCIMNAR6B FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output power of the WR9QE1500CCPCIMNAR6B adapter?

The WR9QE1500CCPCIMNAR6B adapter provides 18W of power.

What is the output voltage and current for this adapter?

This adapter has an output voltage of 12V and a maximum output current of 1.5A.

What are the input voltage requirements?

The adapter accepts an input voltage range of 90 to 264 VAC.

What is the operating temperature range for this adapter?

The operating temperature range is from -10°C to 40°C.

What type of output connector does the WR9QE1500CCPCIMNAR6B use?

It uses a Barrel Plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm.

What are the dimensions of the adapter?

The dimensions are 74.0mm x 43.5mm x 36.8mm.

What safety standards does this adapter comply with?

It complies with standards including 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61558-1, and 62368-1.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	GlobTek, Inc.
Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI
Cord Length	1.53m (60.2")
Current	1.5A
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount (Class II)
Height	36.8mm (1.45")
Input Connector	Multi-Blade (Sold Separately)
Input Type	Multi-Blade (Sold Separately)
Input Voltage	[{'min': 90, 'max': 264, 'unit': 'VAC', 'display_value': '90 ~ 264 VAC'}]
Length	74.0mm (2.91")
Medical Grade	Yes
No Load Power Consumption	75mW (Max)
Operating Temperature	[{'min': -10, 'max': 40, 'unit': '°C', 'display_value': '-10°C ~ 40°C'}]
Output Connector	Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	International
Standard Number	1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 61558-1; 62368-1
Voltage	12V
Width	43.5mm (1.71")
