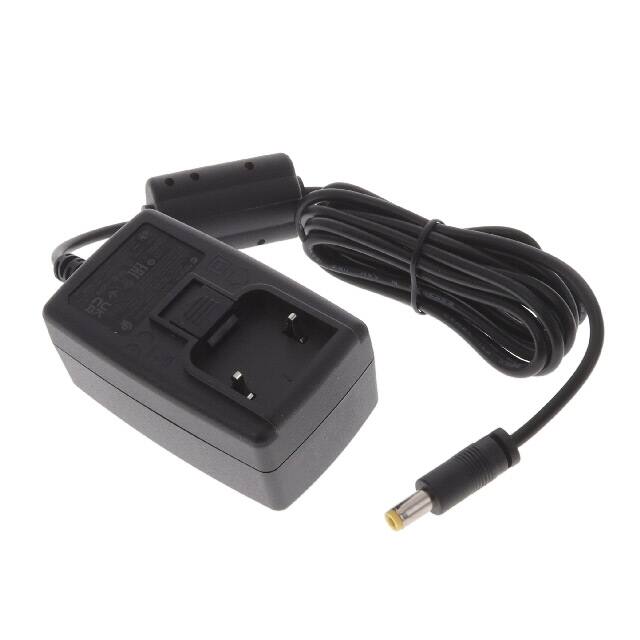

This AC/DC wall mount adapter from GlobTek, Inc., part number WR9QE1500CCP-N(R6B), provides a stable 12V output with a current rating of 1.5A, delivering a total of 18W of power. Designed for ITE (Commercial) applications, it adheres to efficiency standards including Level VI and CoC Tier 2.
The adapter features a compact form factor with dimensions of 74.0mm x 43.5mm x 34.0mm. It utilizes a multi-blade input connector (sold separately) and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The operating temperature range is from 0°C to 40°C, and it boasts a low no-load power consumption of 75mW maximum.
Compliance is assured with approvals from agencies such as CE, cULus, FCC, and PSE, among others, meeting standards like IEC 60950-1 and IEC 62368-1. The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
The adapter provides a 12V output voltage and a 1.5A current.
The adapter has a total power output of 18W.
It meets Level VI and CoC Tier 2 efficiency standards.
This adapter is approved for ITE (Commercial) applications.
The operating temperature range is 0°C to 40°C.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
