| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

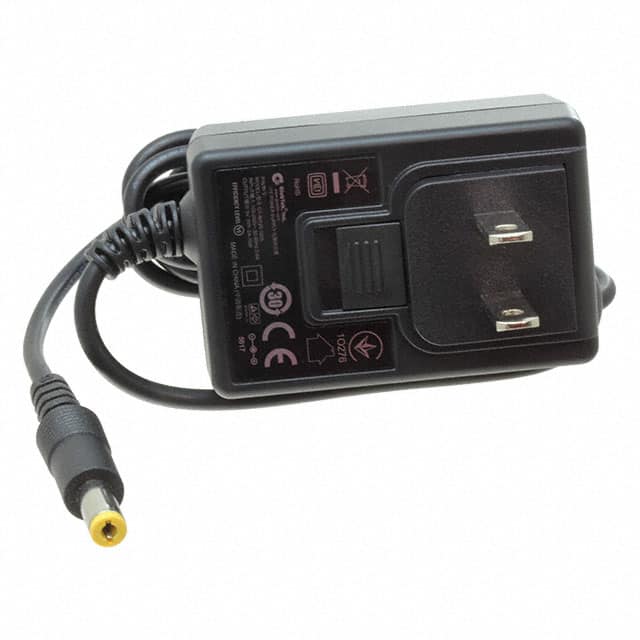

The GlobTek WR9QE1000CCPNA-N(R6B is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 12V output with a current rating of 1A, delivering a total power of 12W. This adapter meets the Level VI efficiency standard, ensuring optimal energy consumption.
Featuring a compact wall mount (Class II) form factor, the adapter has dimensions of 64.0mm x 40.5mm x 31.5mm. It utilizes a multi-blade input connector (sold separately) and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The operating temperature range is from 0°C to 40°C.
This international region adapter is approved by multiple agencies including CB, CE, cULus, EAC, LPS, PSE, UKRSepro, and VCCI, adhering to standard 60950-1. It also features a low no-load power consumption of 75mW (Max) and a cord length of 48.4 inches (1.23m).
12V DC.
1A.
12W.
Level VI.
0°C to 40°C.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm, positive center.
CB, CE, cULus, EAC, LPS, PSE, UKRSepro, VCCI.
