| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

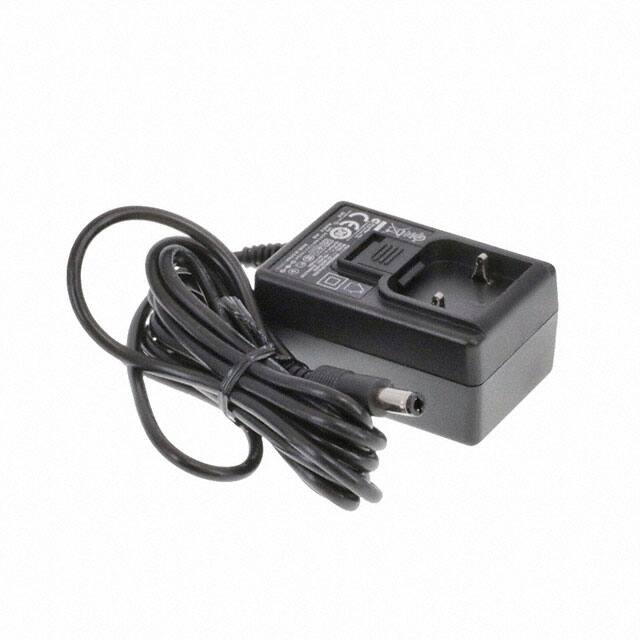

This GlobTek WR9QD660LCP-N(R6B) is a regulated switchmode AC-DC power supply designed for wall plug-in applications. It delivers a stable 9V output at 0.66A, totaling 6W of power.
The adapter accepts a wide input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international use. It meets USA DOE Level VI and Eco-design Directive 2009/125/EC efficiency standards, ensuring reduced energy consumption.
Key features include a 5.5mm x 2.5mm female barrel output connector with internal spring clip and locking notch, and a cord length of 1.83 meters. The operating temperature range is 0°C to 40°C. The unit is housed in a black case and is designed as a Class II, Double Insulation device.
Approvals include RCM, EAC, UKCA, cETLus 62368-1, CB 62368, FCC, CE, China RoHS, PSE, RoHS, WEEE, and others, indicating broad compliance for various markets.
100-240 VAC, 50-60 Hz.
Wall Mount (Class II) design.
0°C to 40°C.
0.66A (6W).
Level VI, CoC Tier 2.
64.0mm x 40.5mm x 31.5mm with a 72-inch (1.83m) cord.
75mW maximum.
