| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

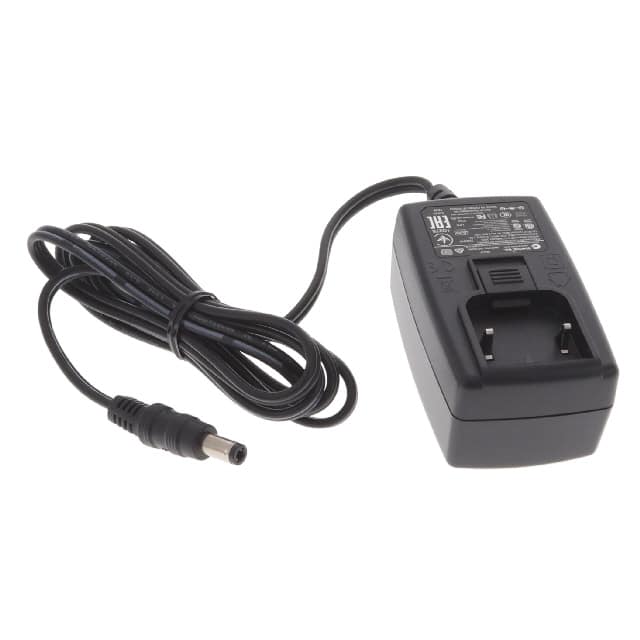

The GlobTek, Inc. WR9QD3888LCP-N(R6B) is an AC/DC wall mount adapter designed for various applications including household appliances, ITE (Commercial), and Medical. It provides a stable 9V output with a maximum current of 3.88A, delivering up to 35W of power.
This adapter features Level VI efficiency and CoC Tier 2 compliance, ensuring energy savings and reduced heat generation. It is equipped with a versatile multi-blade input connector (sold separately) and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. The unit operates within a temperature range of -20°C to 50°C and has a cord length of 47.2 inches (1.20m).
With numerous international approval agencies including CB, CCC, CE, cETLus, EAC, FCC, PSE, and UL, the WR9QD3888LCP-N(R6B) is suitable for global use. Its compact dimensions of 74.0mm x 43.5mm x 36.8mm make it ideal for space-constrained designs. The adapter is classified as Class II for wall mounting.
The WR9QD3888LCP-N(R6B) adapter has an output voltage of 9V and a current rating of 3.88A.
The adapter has a power rating of 35W.
The dimensions are 74.0mm x 43.5mm x 36.8mm.
The adapter operates within a temperature range of -20°C to 50°C.
Yes, it meets Level VI efficiency and CoC Tier 2 standards.
It uses a barrel plug with 2.5mm I.D. x 5.5mm O.D. x 11.0mm dimensions and positive center polarization.
It is approved by CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, and VCCI.
