| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

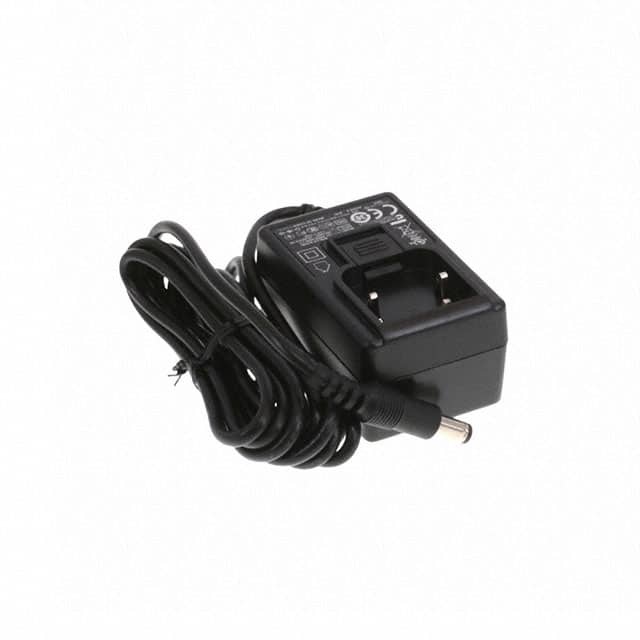

This GlobTek, Inc. WR9QC800LCP-N(R6B) is an AC/DC wall mount adapter designed for commercial ITE applications. It provides a stable 7.5V output with a maximum current of 800mA, delivering a total power of 6W. The adapter meets Level VI efficiency standards and operates within a temperature range of 0°C to 40°C.
Featuring a compact wall mount (Class II) form factor, its dimensions are 64.0mm x 40.5mm x 31.5mm. The input connector is a multi-blade type (sold separately), and the output is a standard barrel plug (2.5mm I.D. x 5.5mm O.D. x 11.0mm). The cord length is 1.83 meters (72 inches).
Compliance is assured with standards such as 60950-1 and approvals from agencies including CE, cULus, and FCC. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH is unaffected.
The adapter provides a 7.5V output voltage and 6W of power.
The maximum output current is 800mA.
The input voltage range is 90 to 264 VAC.
This adapter meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
The dimensions are 64.0mm x 40.5mm x 31.5mm.
It uses a Barrel Plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
