| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

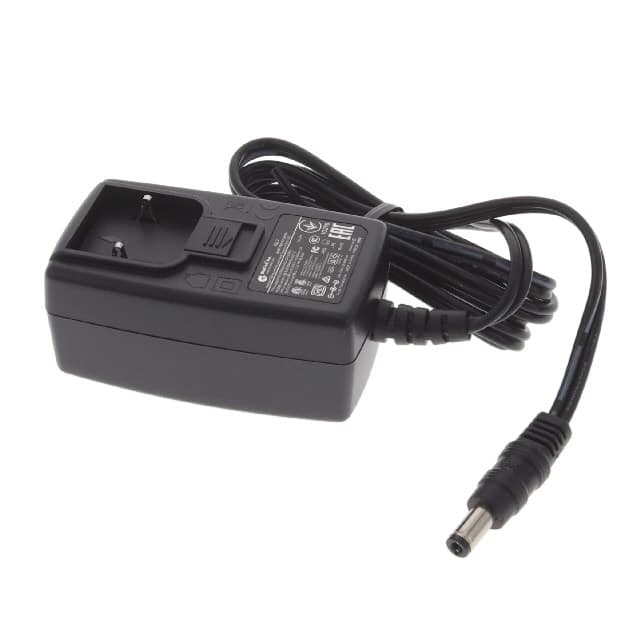

The GlobTek, Inc. WR9QC4000LCP-N(R6B) is a versatile AC/DC wall mount adapter designed for various applications including household appliances, ITE (Commercial), and medical equipment. It delivers a stable 7.5V output at 4A, providing a total power of 30W.
This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 2 compliance. It operates reliably within a temperature range of -20°C to 50°C and features a low no-load power consumption of 75mW maximum. The unit is designed for international use and supports multiple input blade configurations (sold separately).
With its compact dimensions of 74.0mm x 43.5mm x 36.8mm, the WR9QC4000LCP-N(R6B) is suitable for space-constrained designs. It utilizes a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. The adapter is certified by numerous international approval agencies, including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, and VCCI, ensuring compliance and safety across global markets.
The WR9QC4000LCP-N(R6B) provides an output voltage of 7.5V and a current of 4A.
The adapter has a power rating of 30W.
The WR9QC4000LCP-N(R6B) can operate in temperatures ranging from -20°C to 50°C.
The dimensions are 74.0mm L x 43.5mm W x 36.8mm H.
It uses a Barrel Plug with dimensions of 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
Yes, the RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
