| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

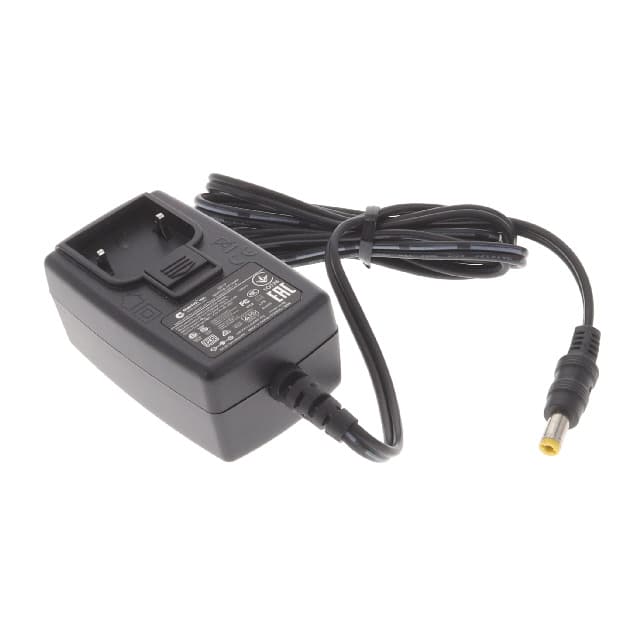

This AC/DC wall mount adapter from GlobTek, Inc., part number WR9QC4000CCP-N(R6B), delivers 30 watts of power with a 7.5V output voltage and 4A current.
Designed for versatility, it features a Level VI and CoC Tier 2 efficiency rating, ensuring optimal power usage. The adapter is suitable for various applications including Household Appliances, ITE (Commercial), and Medical devices, with international region utilization.
The unit has a compact form factor, measuring 74.0mm x 43.5mm x 36.8mm. It utilizes a multi-blade input connector (sold separately) and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The operating temperature range is -20°C to 50°C, and it has a low no-load power consumption of 75mW maximum.
Compliance is supported by numerous agency approvals including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, and VCCI, along with adherence to standards like 60335-1 and 60601-1-11.
The adapter provides a 7.5V output voltage and 4A current.
This adapter has a power rating of 30W.
The adapter measures 74.0mm in length, 43.5mm in width, and 36.8mm in height.
The adapter can operate in temperatures ranging from -20°C to 50°C.
It uses a barrel plug output connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm and positive center polarization.
The adapter meets Level VI and CoC Tier 2 efficiency standards.
It complies with standards including 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
