| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

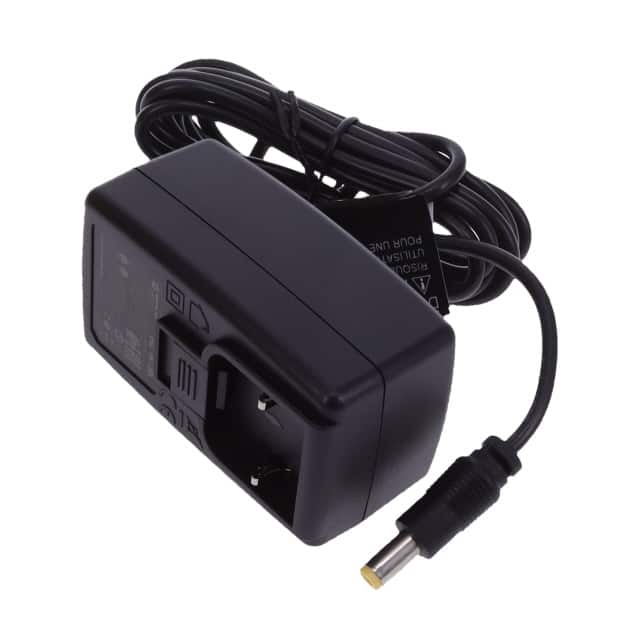

This GlobTek, Inc. WR9QB1000CCPCIMR6B is an AC/DC wall mount adapter delivering 5.59V at 6W of power. It meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy savings.
The adapter is designed for international use and supports input voltages from 100-240 VAC. It features a multi-blade input connector and a barrel plug output with positive center polarization. The dimensions are 74.0mm x 43.5mm x 36.8mm.
Key applications include household appliances, ITE (Commercial), and medical equipment. The adapter has received numerous agency approvals, including CE, cETLus, FCC, and UL, indicating its suitability for a wide range of markets. It operates within a temperature range of -10°C to 50°C.
The adapter provides 5.59VDC at 1A (6W).
It accepts 100-240VAC universal input.
Meets Level VI and CoC Tier 2 efficiency, with max 75mW no-load consumption.
Operates from -10°C to 50°C.
Approved by BSI, CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, S-Mark, UKRSepro, UL, VCCI.
Barrel plug with 1.3mm ID x 3.5mm OD x 11.0mm, center positive.
Household appliances, ITE (commercial), and medical applications.
