| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

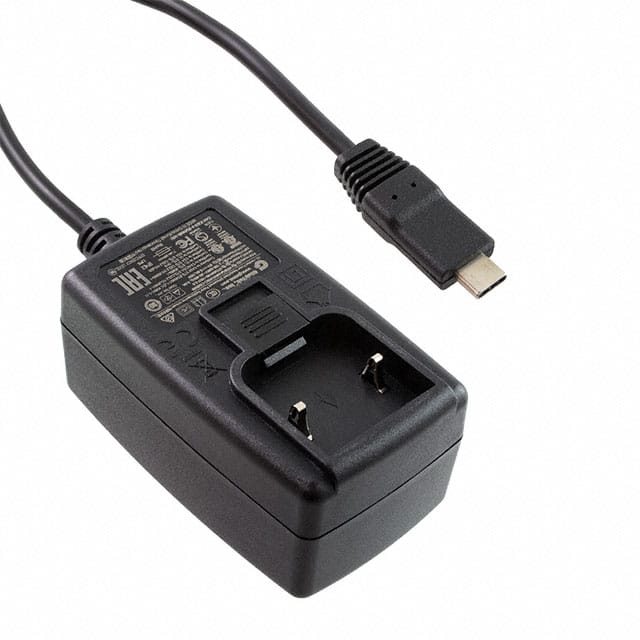

This AC/DC wall mount adapter from GlobTek, Inc., model WR9QA3600USBC-CIMR6B, provides 18 watts of power with a 5V output and a maximum current of 3.6A. It is designed for international use and features a Class II wall mount form factor.
The adapter operates within a wide input voltage range of 90 to 264 VAC and meets Efficiency Level VI and CoC Tier 2 standards. Its output connector is USB C, and it utilizes a multi-blade input connector, sold separately. The operating temperature range is -10°C to 40°C.
Key specifications include a no-load power consumption of 75mW maximum and a cord length of 1.20 meters. The dimensions are 74.0mm x 43.5mm x 36.8mm. This adapter is suitable for applications including household appliances, ITE (Commercial), and Medical devices. It holds numerous agency approvals such as BIS, CB, CCC, CE, cETLus, and UL.
The output voltage is 5 VDC and the maximum output current is 3.6 A.
The input voltage range is 90 to 264 VAC.
It meets Level VI and CoC Tier 2 efficiency standards.
The output connector is USB-C.
The operating temperature range is -10°C to 40°C.
The dimensions are 74.0mm x 43.5mm x 36.8mm.
It is suitable for household appliances, ITE (commercial), and medical applications.
