| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

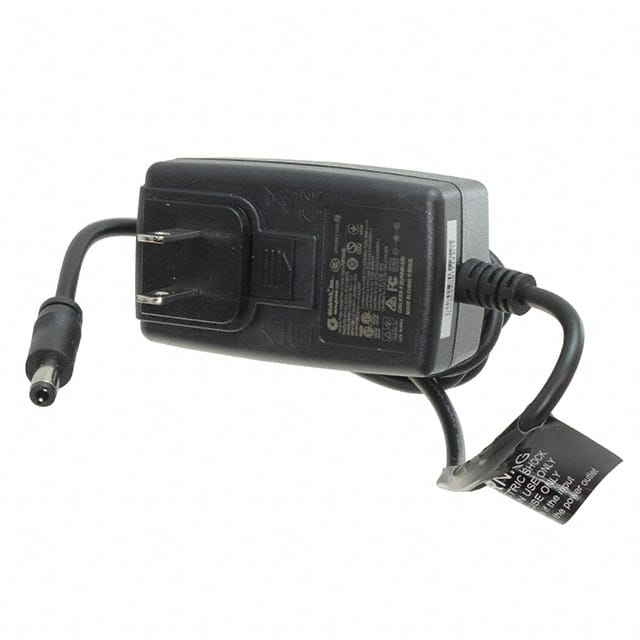

The GlobTek, Inc. WR9QA3600LCPNAIMR6B is a versatile AC/DC wall mount adapter delivering 5V at 18W. This adapter meets Level VI efficiency standards and is suitable for a range of applications including household appliances, commercial ITE (Information Technology Equipment), and medical devices.
Key features include a compact wall mount form factor (Class II) with dimensions of 74.0mm x 43.5mm x 36.8mm. It utilizes a multi-blade input connector (sold separately) and offers a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The operating temperature range is -20°C to 40°C, and it boasts a low no-load power consumption of 75mW maximum.
This adapter complies with numerous international standards, including BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI, making it suitable for international use. It is also RoHS3 compliant and has an MSL rating of 1.
This adapter has an output voltage of 5V and an output current of 3.6A.
The power rating of this adapter is 18W.
The operating temperature range is -20°C to 40°C.
This adapter meets Level VI efficiency standards and CoC Tier 2.
The dimensions are 74.0mm in length, 43.5mm in width, and 36.8mm in height.
It uses a multi-blade input connector (sold separately) and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm).
Yes, this adapter is RoHS3 Compliant.
