| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

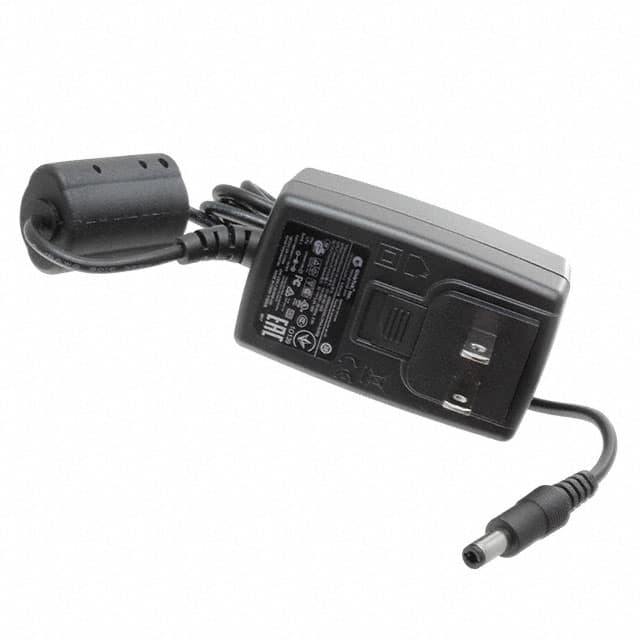

The GlobTek WR9QA3200LCPNA-N(R6B is a regulated switchmode AC-DC power supply designed for wall-mounting applications. It provides a stable 5VDC output at 3.2A, delivering a total of 16W of power.
This adapter operates with a wide input voltage range of 100-240VAC and a frequency of 50-60Hz, making it suitable for international use. It features Level VI efficiency, ensuring reduced energy consumption. The unit is designed for ITE (Commercial) applications and conforms to safety standards like 60950-1 and 62368-1.
The physical dimensions are 74.0mm in length, 43.5mm in width, and 34.0mm in height. It utilizes a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The input connector is a multi-blade type, sold separately, allowing for regional customization.
Operating temperature ranges from 0°C to 40°C. The adapter has a low no-load power consumption of 75mW maximum. It is classified as Class II for wall mounting.
100-240 VAC.
5 VDC at 3.2 A.
0°C to 40°C.
Level VI.
Barrel plug, 2.5mm ID x 5.5mm OD, positive center.
Wall mount (Class II).
ITE (commercial).
