| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

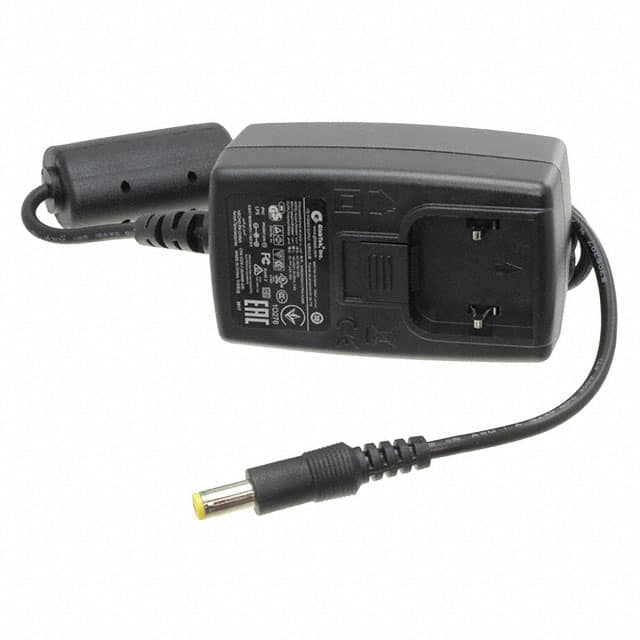

The GlobTek, Inc. WR9QA3200CCPNA-N(R6B is a versatile AC/DC external wall mount adapter designed for commercial ITE applications. It delivers a stable 5V output with a maximum current of 3.2A, providing a total power of 16W. This adapter meets Efficiency Level VI standards, ensuring optimal energy consumption.
The unit operates within a wide input voltage range of 90 to 264 VAC, making it suitable for international use. It features a convenient multi-blade input connector (sold separately) and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm). The adapter's compact dimensions are 74.0mm x 43.5mm x 34.0mm, and it includes a 1.20m (47.2") cord length.
Designed for reliability, the WR9QA3200CCPNA-N(R6B operates within an ambient temperature range of 0°C to 40°C. It adheres to safety standards including 60950-1 and 62368-1, and carries approvals from agencies such as CB, CE, cULus, and FCC. The adapter also boasts a low no-load power consumption of 75mW (Max).
The output voltage is 5V.
The maximum output current is 3.2A.
The power rating is 16W.
The input voltage range is 90 to 264 VAC.
The operating temperature range is 0°C to 40°C.
The dimensions are 74.0mm x 43.5mm x 34.0mm.
It has a Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm output connector.
