| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

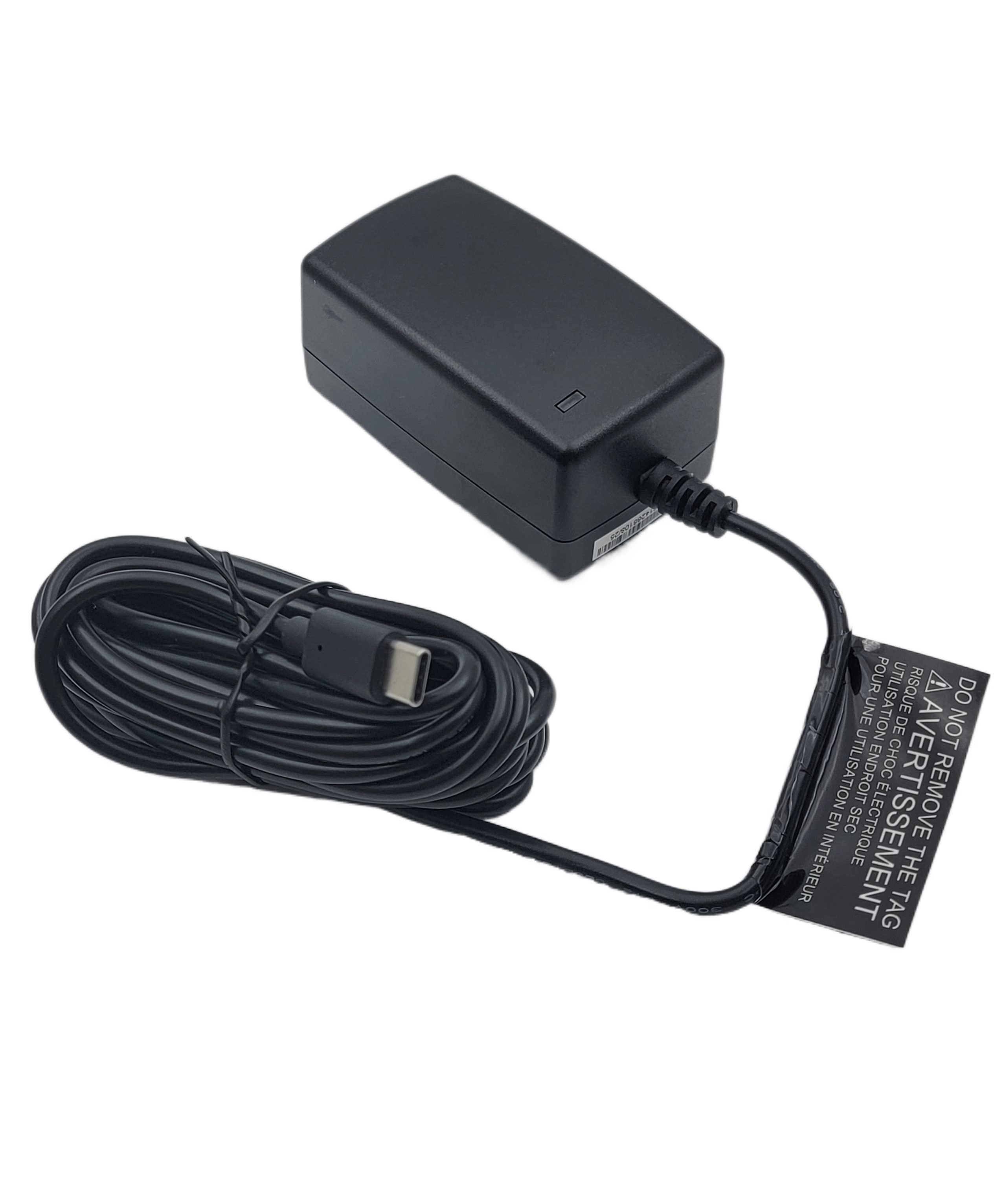

The GlobTek WR9QA3000USBC3MNA-CIMR6B is a regulated switchmode AC-DC power supply designed for wall plug-in applications. It delivers a stable 5.0V output at 3.0A, providing a total of 15W of power.
This adapter is suitable for various applications including household appliances, commercial ITE (Information Technology Equipment), and medical devices. It operates with an input voltage range of 100-240 VAC at 50-60 Hz and features interchangeable blades for international use. The unit meets USA DoE Level VI and EU Eco-Design Directive efficiency standards.
The output is delivered via a USB Type-C receptacle, compliant with Directive (EU) 2022/2380. The compact dimensions are 74.0mm x 43.5mm x 36.8mm. The operating temperature range is -20°C to 40°C. It is designed as a Class II, double insulated unit.
Key specifications include a low no-load power consumption of 75mW (Max). The adapter carries numerous approvals, including CB, CE, cETLus, ETL, FCC, and UL, among others, ensuring compliance with international safety and performance standards.
100-240 VAC at 50-60 Hz.
5 VDC at 3.0 A.
15 W.
Level VI, CoC Tier 2.
-20°C to 40°C.
USB-C receptacle.
BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI.
