| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

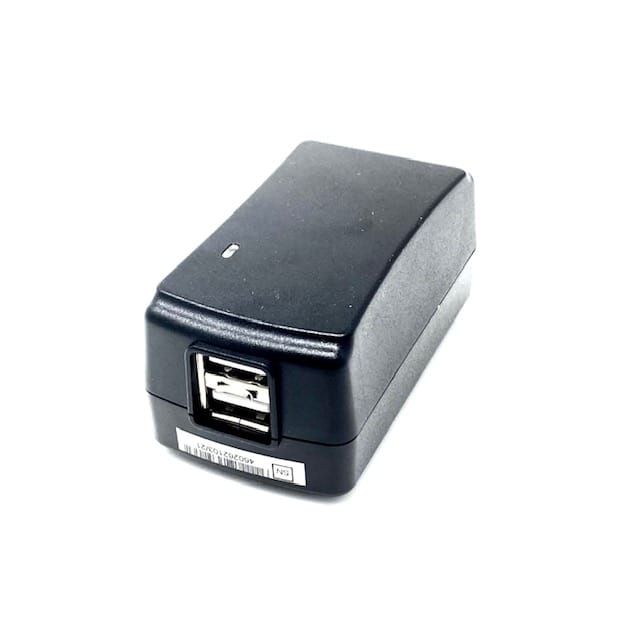

The GlobTek WR9QA3000USBA2CIMR6B is a versatile AC/DC wall mount power adapter designed for various applications including household appliances, ITE commercial equipment, and medical devices. It operates with an input voltage range of 100-240 VAC and a frequency of 50-60 Hz, making it suitable for international use.
This adapter delivers a stable output of 5V at 3A, totaling 15W of power. It is equipped with dual USB-A receptacles for convenient connectivity. The unit meets USA DOE Level VI and Eco-design Directive 2009/125/EC, (EU) 2019/1782 efficiency standards, ensuring energy-conscious operation with a low no-load power consumption of 100mW.
Designed as a Class II wall mount unit, it operates within a temperature range of 0°C to 40°C. The dimensions are 41.0mm x 74.8mm x 35.3mm. The input connector requires multi-blades, which are sold separately. The adapter is compliant with numerous safety standards including CB, CCC, CE, EAC, ETL, LPS, and PSE, and conforms to 60335-1, 60601-1, 60950-1, and 62368-1.
Environmental compliance includes RoHS3, MSL Level 1, and REACH Unaffected status. It also features double insulation for enhanced safety.
100-240 VAC at 50-60 Hz.
5 VDC at 3 A, 15 W total via two USB A ports.
USA DOE Level VI and Eco-design Directive 2009/125/EC, (EU) 2019/1782.
0°C to 40°C.
41.0mm x 74.8mm x 35.3mm (1.61" x 2.95" x 1.39").
CB, CCC, CE, EAC, ETL, LPS, PSE.
Household appliances, ITE (commercial), and medical equipment.
