| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

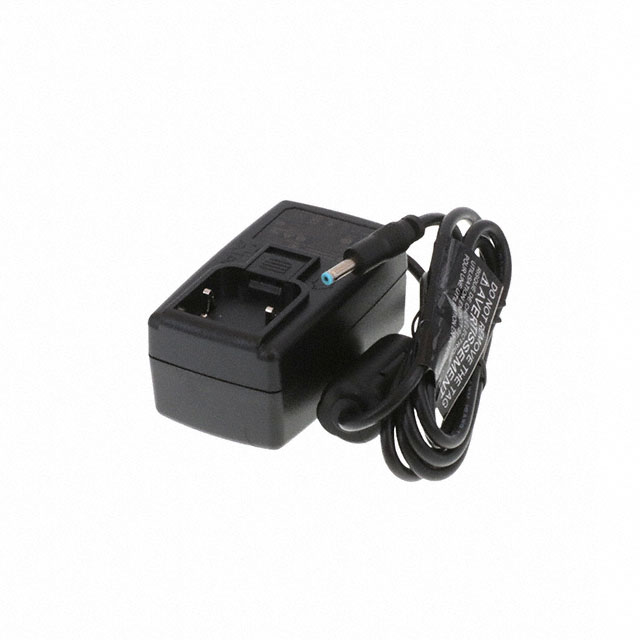

This GlobTek, Inc. WR9QA3000KCP-CIMR6B is an AC/DC wall mount adapter designed for household appliances, ITE (Commercial), and medical applications. It delivers a stable 5V output at a maximum current of 3A, with a total power output of 15W.
The adapter operates with an input voltage range of 90 to 264 VAC and features a multi-blade input connector, sold separately. It is designed as a Class II wall mount unit with a positive center polarization and a barrel plug output connector (1.35mm I.D. x 3.5mm O.D. x 11.0mm). The device complies with Efficiency Level VI and CoC Tier 2 standards, with a low no-load power consumption of 75mW maximum.
Key specifications include a compact size of 74.0mm x 43.5mm x 34.0mm and an operating temperature range of -10°C to 40°C. It also boasts an extensive list of approval agencies, including BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI, ensuring broad compliance for international use. The cord length is 1.20m (47.2").
Environmental compliance includes RoHS3 compliance and REACH unaffected status. The adapter adheres to various international standards such as IEC 60335-1, IEC 60601-1-11, IEC 60601-1-2, IEC 60950-1, IEC 61558-1, and IEC 62368-1.
The adapter provides a 5V output at a maximum current of 3A.
The adapter has a power rating of 15W.
The adapter accepts an input voltage range of 90 to 264 VAC.
The adapter can operate within a temperature range of -10°C to 40°C.
It uses a Barrel Plug connector with dimensions 1.35mm I.D. x 3.5mm O.D. x 11.0mm.
It complies with standards including 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61558-1, and 62368-1.
The dimensions are 74.0mm x 43.5mm x 34.0mm.
