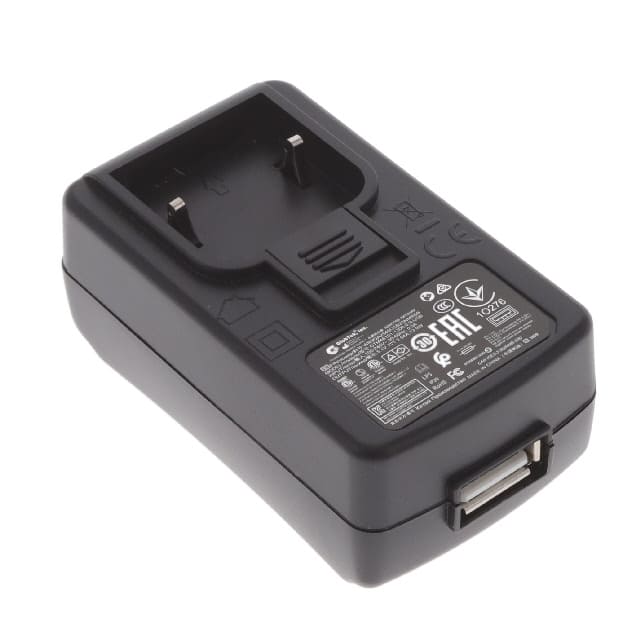

WR9QA2540USB23NMR6B The GlobTek, Inc. WR9QA2540USB23NMR6B is a 13W AC/DC power adapter with a 5.1V output at 2.54A. It features a USB A receptacle and Level VI efficiency.
Mfr Part #:

WR9QA2540USB23NMR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek, Inc. WR9QA2540USB23NMR6B is a 13W AC/DC power adapter with a 5.1V output at 2.54A. It features a USB A receptacle and Level VI efficiency.
Stock on Request

WR9QA2540USB23NMR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Length
Mounting Type
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

WR9QA2540USB23NMR6B Description

Short technical summary and product information.

This GlobTek, Inc. AC/DC power adapter, part number WR9QA2540USB23NMR6B, delivers 13W of power with a regulated 5.1V output at 2.54A. It is designed for international use, accepting an input voltage range of 100-240 VAC at 50-60 Hz.



The adapter features a Type "A" USB "JACK" output connector integrated into its enclosure. It meets Level VI efficiency standards and is suitable for applications in household appliances, ITE (Commercial), and Medical fields. The unit operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 75mW maximum.



With a compact form factor of 71.0mm x 41.0mm x 31.5mm, this wall-mount adapter (Class II) is designed for convenience. It supports multiple international approvals including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, SIQ, and UKRSepro, adhering to standards such as 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. The input connector is a multi-blade type, sold separately.

WR9QA2540USB23NMR6B Quick Information

Product Type: AC/DC Power Adapter
Canonical Name: GlobTek, Inc. WR9QA2540USB23NMR6B AC/DC Power Adapter
Subcategory: Wall Adapter

WR9QA2540USB23NMR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WR9QA2540USB23NMR6B Features

  • 13W AC/DC power adapter with 5.1V output.
  • 2.54A output current via USB A receptacle.
  • 100-240 VAC international input range.
  • Level VI efficiency rating.
  • Compact wall-mount (Class II) form factor.

WR9QA2540USB23NMR6B Applications

  • Suitable for household appliances.
  • Designed for ITE commercial use.
  • Appropriate for medical equipment.
  • International voltage compatibility.

WR9QA2540USB23NMR6B FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the WR9QA2540USB23NMR6B?

The WR9QA2540USB23NMR6B provides an output voltage of 5.1V at a current of 2.54A.

What is the power rating of this AC/DC adapter?

This adapter has a power rating of 13W.

What is the input voltage range for the GlobTek WR9QA2540USB23NMR6B?

The adapter accepts an input voltage range of 100-240 VAC.

What type of output connector does this adapter use?

It features a Type "A" USB "JACK" output connector.

What is the operating temperature range for this power supply?

The operating temperature range is 0°C to 40°C.

Does this adapter meet Level VI efficiency standards?

Yes, it meets Level VI efficiency standards.
