| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

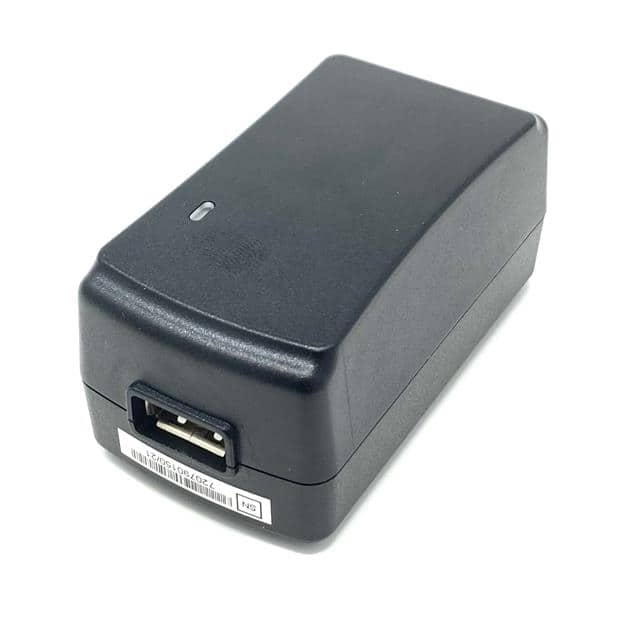

This AC/DC wall mount adapter from GlobTek, Inc., part number WR9QA2115USBNMR6BLMT, provides a stable 5.2V output with a current of 2.1A, totaling 11W of power. Designed for ITE (Commercial) and Medical applications, it features a universal input voltage range of 100-240 VAC and adheres to high efficiency standards, including Level VI and CoC Tier 2.
The adapter has a compact form factor, measuring 74.8mm in length, 41.0mm in width, and 35.3mm in height. It utilizes a USB A receptacle for output and requires a multi-blade input connector, which is sold separately. The operating temperature range is from 0°C to 40°C with derating. Compliance is certified by multiple agencies including CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, Ukraine, VCCI, and WEEE, and it meets standards such as 60335-1, 60601-1, 60950-1, and 62368-1.
It is suitable for international use and has a low no-load power consumption of 75mW maximum. The RoHS status is compliant with RoHS3, and it has an MSL of 1.
The WR9QA2115USBNMR6BLMT adapter has an output voltage of 5.2VDC and an output current of 2.1A.
The power rating of the WR9QA2115USBNMR6BLMT adapter is 11W.
The WR9QA2115USBNMR6BLMT adapter meets Level VI and CoC Tier 2 efficiency standards.
The WR9QA2115USBNMR6BLMT adapter is suitable for ITE (Commercial) and Medical applications.
The operating temperature range for the WR9QA2115USBNMR6BLMT adapter is 0°C to 40°C, with derating.
Yes, the WR9QA2115USBNMR6BLMT adapter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the WR9QA2115USBNMR6BLMT adapter is 1 Unlimited.
