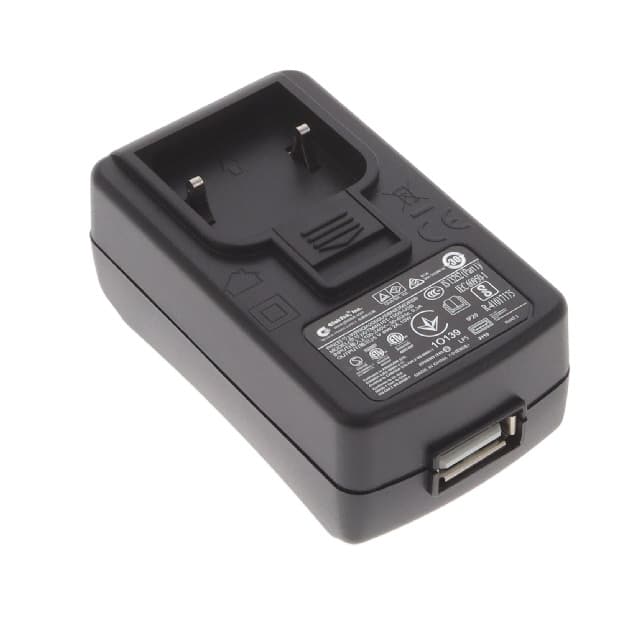

The GlobTek WR9QA2000USBN23MDR6B is a regulated switchmode AC-DC power supply designed for wall mounting. It operates with an input voltage range of 100-240V AC and delivers a stable 5.0V DC output at up to 2.0A, providing a total of 10.00W of power.
This adapter is designed for international use and features a multi-blade input connector, which is sold separately. The output is delivered via a Type "A" USB receptacle integrated into the power supply enclosure. It meets USA DOE Level VI and Eco-design Directive 2009/125/EC efficiency standards, with a maximum no-load power consumption of 100mW.
Key specifications include an operating temperature range of 0°C to 40°C. The unit has dimensions of 71.0mm x 41.0mm x 31.5mm. It is suitable for applications in household appliances, ITE (Commercial), and Medical sectors. The adapter carries numerous approvals, including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, SIQ, and UKRSepro.
Compliance includes RoHS3 status, MSL 1, and REACH unaffected. The WR9QA2000USBN23MDR6B is designed as a Class II, wall mount form factor.
100-240 VAC universal input.
5V DC at 2A (10W) via USB A receptacle.
Level VI per US DOE and EU Ecodesign Directive.
0°C to 40°C.
Wall mount Class II design measuring 71.0mm x 41.0mm x 31.5mm.
CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, SIQ, UKRSepro.
100mW maximum.
