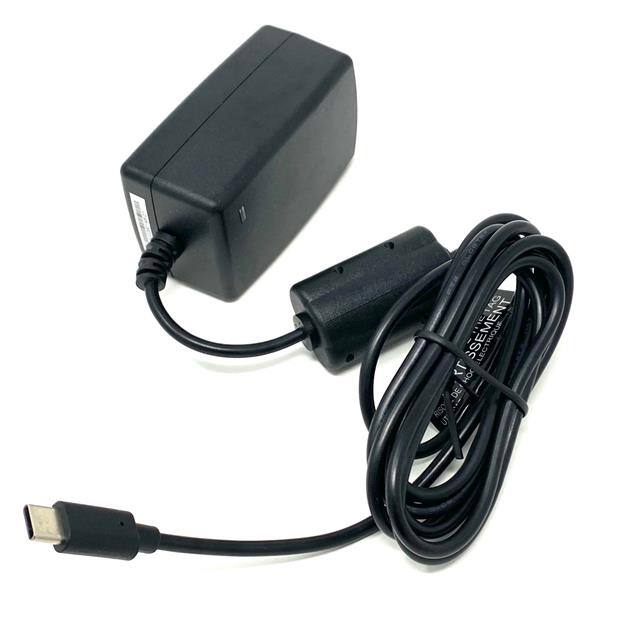

WR9QA1500USBC-CIMR6B The GlobTek WR9QA1500USBC-CIMR6B is a 7.5W AC/DC wall mount power adapter providing a 5V output at 1.5A. It features a USB Type-C connector and meets Level VI efficiency standards.
Mfr Part #:

WR9QA1500USBC-CIMR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek WR9QA1500USBC-CIMR6B is a 7.5W AC/DC wall mount power adapter providing a 5V output at 1.5A. It features a USB Type-C connector and meets Level VI efficiency standards.
Stock on Request

WR9QA1500USBC-CIMR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Input Connector
Input Frequency
Input Type
Input Voltage
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
Standard Number
Voltage
View Similar Products (0)

WR9QA1500USBC-CIMR6B Description

Short technical summary and product information.

The GlobTek WR9QA1500USBC-CIMR6B is a regulated switchmode AC-DC power supply designed for wall-plug-in applications. It delivers a stable 5.0V output at 1.5A, totaling 7.5W of power.



This power adapter is suitable for International use, accepting an input voltage range of 100-240V AC at 50-60 Hz. It features a USB Type-C receptacle for output and utilizes a multi-blade input connector, with blades sold separately. The unit is designed for wall mounting and is Class II rated.



Compliance and efficiency are key features, with the WR9QA1500USBC-CIMR6B meeting USA DoE Level VI and Eco-Design Directive 2009/125/EC standards. It carries numerous approvals including CB, CCC, CE, cETLus, ETL, FCC, and UL, making it suitable for ITE (Commercial) and Medical applications. The operating temperature range is -10°C to 50°C.



Additional specifications include a cord length of 1.50m (59 inches) and a low no-load power consumption of 75mW maximum. The compact dimensions are 74.0mm x 43.5mm x 36.8mm.

WR9QA1500USBC-CIMR6B Quick Information

Product Type: AC/DC Power Supply
Canonical Name: GlobTek, Inc. WR9QA1500USBC-CIMR6B AC/DC Power Supply
Subcategory: Wall Adapter

WR9QA1500USBC-CIMR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WR9QA1500USBC-CIMR6B Features

  • Provides 5V at 1.5A output power.
  • Features a USB Type-C output connector.
  • Meets Level VI efficiency standards.
  • Suitable for ITE and Medical applications.
  • Operates from 100-240V AC international input.

WR9QA1500USBC-CIMR6B Applications

  • Ideal for commercial ITE equipment.
  • Suitable for medical device power.
  • Used in international product designs.
  • Requires separate input blade purchase.

WR9QA1500USBC-CIMR6B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the WR9QA1500USBC?

The input voltage range is 100-240 VAC at 50-60 Hz.

What is the output voltage and current?

The output is 5.0 V at 1.5 A, providing 7.5 W.

What efficiency level does this adapter meet?

It meets Level VI efficiency and CoC Tier 2.

What type of output connector does it have?

It has a USB-C receptacle output connector.

What is the operating temperature range?

The operating temperature range is -10°C to 50°C.

What are the physical dimensions of the adapter?

The dimensions are 74.0 mm x 43.5 mm x 36.8 mm (2.91" x 1.71" x 1.45").

What safety certifications does the WR9QA1500USBC have?

It is certified to standards 60335-1, 60601-1, 60950-1, and 62368-1, with approvals from UL, CE, FCC, and many others.
