| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

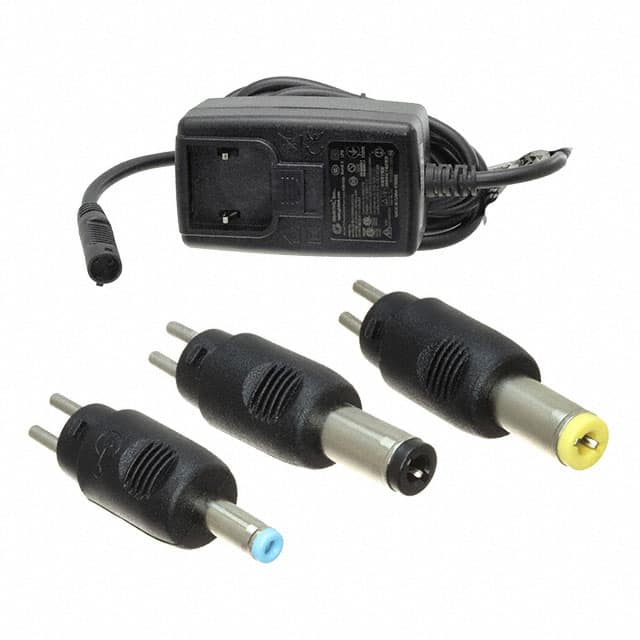

The GlobTek WR9QA1200T00-IMR6B is a versatile AC/DC wall mount power adapter designed for various applications, including household appliances, ITE commercial equipment, and medical devices. It operates with an input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international use.
This adapter delivers a stable output of 5.0V at 1.2A, providing a total power of 6.00W. It is designed with Level VI efficiency, ensuring optimal energy consumption, and features a low no-load power consumption of 75mW maximum.
The unit operates within a temperature range of -20°C to 50°C. Its physical dimensions are 43.5mm in length, 74.0mm in width, and 36.8mm in height. The adapter utilizes a multi-blade input connector system, sold separately, and offers various barrel plug output connector options.
Compliance is a key feature, with approvals from agencies such as CB, CCC, CE, ETL, FCC, UL, and VCCI, adhering to standards like 62368-1 and 60601-1-11. The RoHS status is listed as RoHS3 Compliant, MSL as 1 Unlimited, and REACH as Unaffected.
100-240 VAC at 50-60 Hz.
-20°C to 50°C.
5.0 V at 1.2 A (6 W).
Wall mount (Class II) with a 1.5 m output cord.
Level VI.
Barrel plug kit includes 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
BSI, CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, S-Mark, UKRSepro, UL, VCCI.
