| Category | |
| Manufacturer Name | |
| Case Color | |
| Frequency | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage |

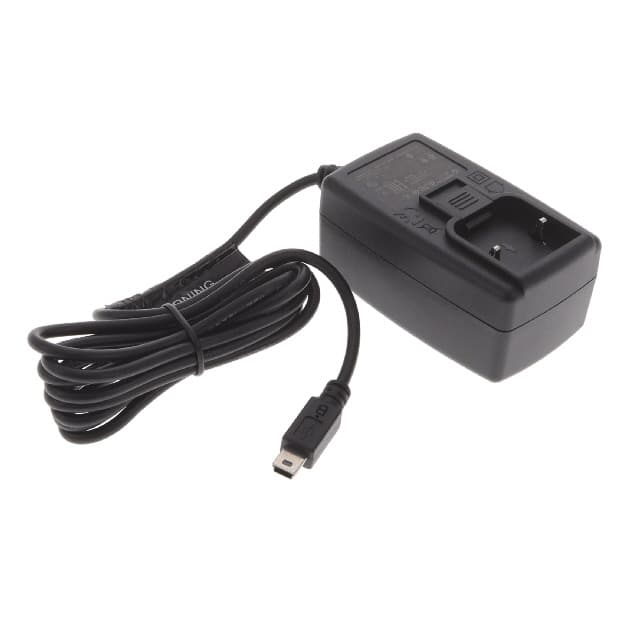

The GlobTek WR9QA1200MSB-IMR6B is a wall plug-in AC-DC power adapter designed for ICT, ITE, and medical applications. This regulated switchmode power supply operates with a universal input voltage range of 100-240V AC at 50-60 Hz.
It delivers a stable 5.0V DC output at a maximum current of 1.2A, providing a total output power of 6W. The adapter meets USA DoE Level VI efficiency standards, ensuring energy-conscious operation. The output is configured with a 1530 mm cable and a Mini-B USB 5 Pin Type "B" connector, including a 200 Ohm resistor between pins 2 and 3.
This power supply features a compact black case and is designed for wall plug-in mounting. It has a maximum operating temperature of 50°C. The WR9QA1200MSB-IMR6B is suitable for household power supply needs and complies with various international safety and performance standards.
100-240 VAC, 50-60 Hz.
5.0 VDC.
1.2 A.
6 W.
Level VI.
Mini-B USB 5 pin Type B with 200 ohm resistor between pin 2 and 3.
50 °C.
