| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

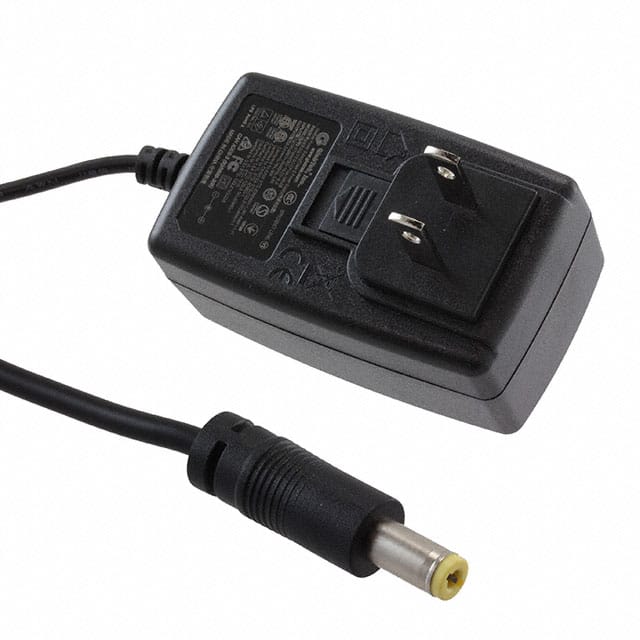

This GlobTek, Inc. WR9QA1200CCPNAIMR6B is an AC/DC wall mount adapter designed for various applications including household appliances, ITE (Commercial), and Medical.
It delivers a stable 5V output with a maximum current of 1.2A, providing a total power of 6W. The adapter meets Level VI efficiency standards, ensuring energy savings. Its input is a multi-blade connector (sold separately), and it features a barrel plug output with 2.1mm I.D. x 5.5mm O.D. x 11.0mm dimensions and positive center polarization.
The adapter operates within a temperature range of -20°C to 50°C. Its compact dimensions are 43.5mm in length, 74.0mm in width, and 36.8mm in height. The unit is designed as a Class II wall mount adapter and complies with numerous international standards including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1, with approvals from agencies like cETLus, CE, and UL.
It is suitable for international use and has a low no-load power consumption of 75mW (Max). The RoHS status is RoHS3 Compliant, and it has an MSL of 1.
The output is 5V at 1.2A (6W).
The operating temperature range is -20°C to 50°C.
It meets Level VI efficiency.
It uses a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 11.0mm, positive center polarity.
The adapter measures 43.5mm x 74.0mm x 36.8mm.
It complies with standards 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
It is approved for household appliances, ITE (commercial), and medical applications.
