| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

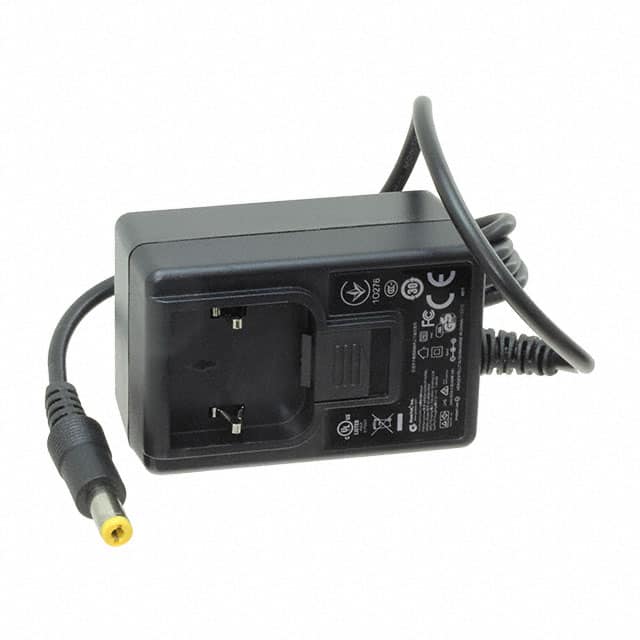

This GlobTek WR9QA1200CCP-N(R6B) is a versatile AC/DC wall mount adapter designed for ITE commercial applications. It provides a stable 5V output with a maximum current of 1.2A, delivering up to 6W of power.
The adapter operates within a wide input voltage range of 90 to 264 VAC, making it suitable for international use. It boasts Level VI efficiency, ensuring minimal energy waste with a low no-load power consumption of 75mW maximum. The unit features a positive center polarization and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm).
Designed for convenience, this adapter has a compact form factor with dimensions of 40.5mm x 64.0mm x 30.0mm and a cord length of 48.4 inches (1.23m). The input connection is via a multi-blade design, sold separately, allowing for flexible regional plug configurations. It complies with safety standard 60950-1 and has received numerous certifications, including CE, cULus, FCC, and PSE, among others.
Environmental compliance includes RoHS3 compliance and an MSL rating of 1. The operating temperature range is from 0°C to 40°C.
90 to 264 VAC.
Bulk.
0°C to 40°C.
5V at 1.2A.
Level VI.
75mW maximum.
Barrel plug, 2.1mm ID x 5.5mm OD x 11.0mm.
