| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

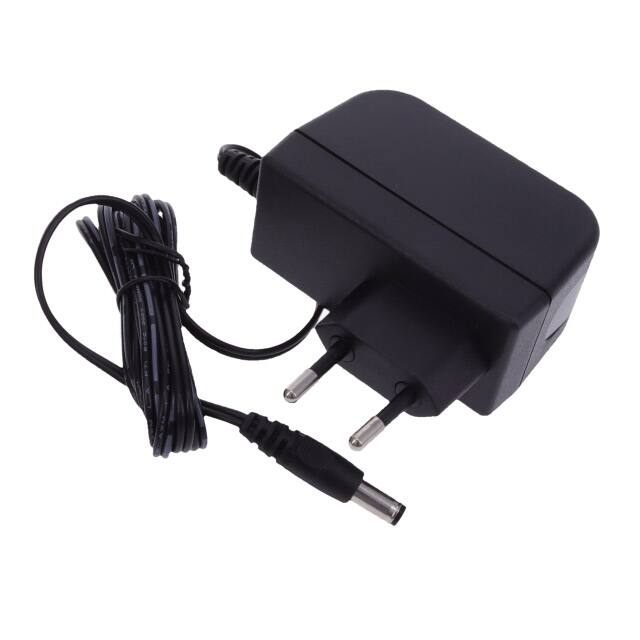

The GlobTek WR9MG1200LCP-F(R6B) is a regulated switchmode AC-DC power supply designed for wall-mounting applications. It delivers a stable 15V output at 1.2A, providing a total power of 18W. This adapter operates with a universal input voltage range of 100-240V AC at 50/60Hz and features a fixed Euro plug for input.
Designed for ITE (Information Technology Equipment) and commercial use, the WR9MG1200LCP-F(R6B) complies with USA DOE Level VI and EU Eco-design Directive 2009/125/EC, (EU) 2019/1782 efficiency standards. It offers a low no-load power consumption of 75mW maximum.
The unit has a compact form factor with dimensions of 73.5mm x 35.0mm x 83.4mm. The output is delivered via a standard 5.5mm x 2.5mm barrel plug with a positive center polarity and a cord length of 1.50 meters. The operating temperature range is from 0°C to 40°C.
Key approvals include CE, EAC, CB 62368, and compliance with IEC 62368-1. The RoHS status is reported as RoHS3 Compliant, and it is classified as Moisture Sensitivity Level 1.
The WR9MG1200LCP-F(R6B) provides an output voltage of 15V at 1.2A.
The power rating of the WR9MG1200LCP-F(R6B) is 18W.
The WR9MG1200LCP-F(R6B) accepts an input voltage range of 100-240V AC at 50/60Hz.
The WR9MG1200LCP-F(R6B) meets Level VI efficiency standards.
The WR9MG1200LCP-F(R6B) uses a 5.5mm x 2.5mm barrel plug with positive center polarity.
The operating temperature range for the WR9MG1200LCP-F(R6B) is 0°C to 40°C.
The RoHS status for the WR9MG1200LCP-F(R6B) is reported as RoHS3 Compliant.
