| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

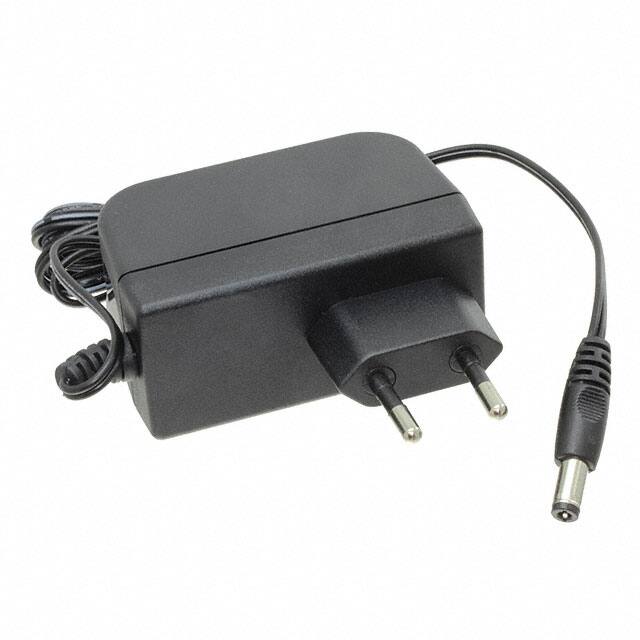

This GlobTek WR9ME1500LCP-F(R6B) is an AC/DC external wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 1.5A, providing a total power of 18W. The adapter features a fixed blade input connector and a common barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm).
Designed for efficiency, this unit complies with Level VI standards and operates within a wide input voltage range of 90-264 VAC. Its compact dimensions are 73.5mm x 35.0mm x 64.4mm. The adapter is suitable for use in Europe, adhering to the 60950-1 standard.
Key specifications include a low no-load power consumption of 75mW (Max) and an operating temperature range of 0°C to 40°C. The adapter is RoHS3 compliant and REACH unaffected.
The adapter provides a 12V output at a maximum current of 1.5A.
The adapter has a power rating of 18W.
The adapter meets Level VI efficiency standards.
The adapter accepts an input voltage range of 90 to 264 VAC.
The adapter can operate within a temperature range of 0°C to 40°C.
It uses a barrel plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
The adapter is a Class II wall mount type.
