| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

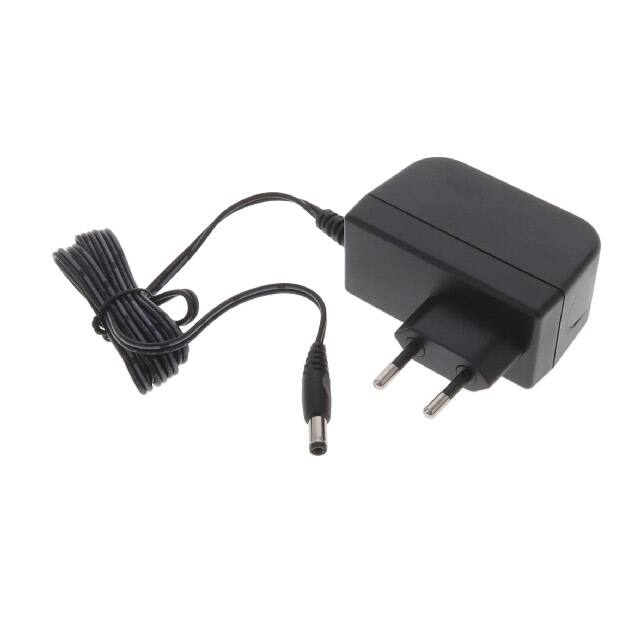

This AC/DC wall mount adapter from GlobTek, Inc., model WR9MD2000CCP-F(R6B), delivers 18 watts of power with a 9V output. It operates within a 90-264 VAC input voltage range and features a fixed blade input connector.
The adapter is designed for ITE (Commercial) applications and complies with safety standard 60950-1, carrying approvals from agencies such as CB, CE, and EAC. It boasts Level VI efficiency and a low no-load power consumption of 75mW maximum.
With dimensions of 73.5mm x 35.0mm x 83.4mm, it is a compact wall mount unit. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug with a positive center polarization. The integrated cord length is 1.50 meters (59 inches).
Environmental considerations include RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1 Unlimited. The operating temperature range is 0°C to 40°C.
The WR9MD2000CCP-F(R6B) provides a 9V output voltage and a maximum current of 2A.
This adapter has a power rating of 18W.
The adapter accepts an input voltage range of 90 to 264 VAC.
The operating temperature range for this adapter is 0°C to 40°C.
It uses a Barrel Plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm and positive center polarization.
The dimensions are 73.5mm x 35.0mm x 83.4mm.
