| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

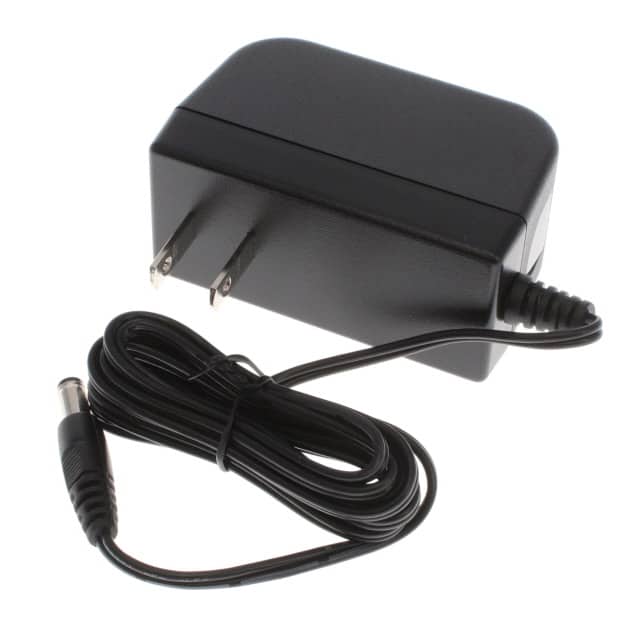

This AC/DC wall mount adapter from GlobTek, Inc., model WR9HU1800CCP-F(R6B), delivers 18 watts of power with a stable 10V output voltage and a maximum output current of 1.8A. Designed for ITE (Commercial) applications, it operates within a wide input voltage range of 90-264 VAC and meets Efficiency Level VI and CoC Tier 2 standards.
The adapter features a fixed blade input connector (NEMA 1-15P) and a common barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm). Its compact dimensions are 73.5mm x 35.0mm x 46.0mm, making it suitable for various space-constrained designs. The operating temperature range is 0°C to 40°C.
Compliance is assured with certifications including CB, cULus, EAC, LPS, PSE, UKRSepro, and VCCI. The unit is RoHS3 Compliant and REACH Unaffected, with a Moisture Sensitivity Level (MSL) of 1 Unlimited. The cord length is 1.50 meters (59 inches).
The adapter has a 10V output voltage and a maximum output current of 1.8A.
The adapter accepts an input voltage range of 90 to 264 VAC.
The power rating of this adapter is 18W.
The adapter measures 73.5mm in length, 35.0mm in width, and 46.0mm in height.
The operating temperature range is from 0°C to 40°C.
It uses a Barrel Plug with dimensions of 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
This adapter meets Efficiency Level VI and CoC Tier 2 standards.
