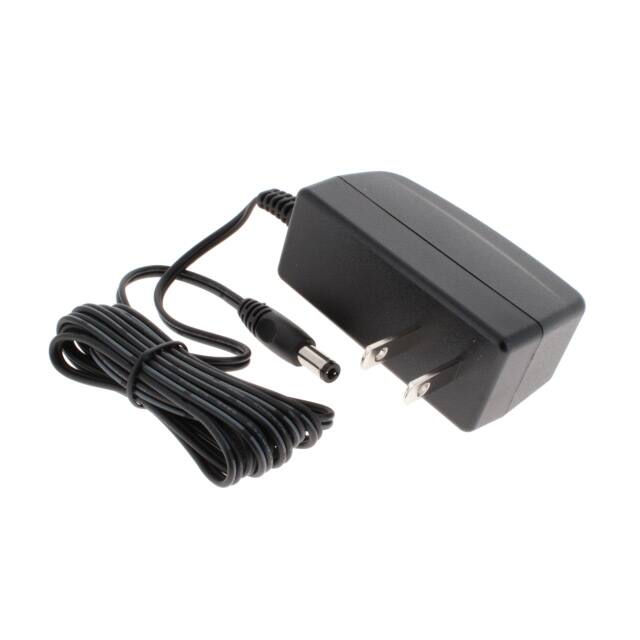

WR9HI500LCP-F(R6B) The GlobTek, Inc. WR9HI500LCP-F(R6B) is a 12W AC/DC wall mount adapter providing a 24V output. It features Level VI efficiency and a NEMA 1-15P input connector.
Mfr Part #:

WR9HI500LCP-F(R6B)

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek, Inc. WR9HI500LCP-F(R6B) is a 12W AC/DC wall mount adapter providing a 24V output. It features Level VI efficiency and a NEMA 1-15P input connector.
Stock on Request

WR9HI500LCP-F(R6B) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Dimensions
Efficiency
Form
Height
Input Connector
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Output Current
Output Voltage
Polarization
Power
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

WR9HI500LCP-F(R6B) Description

Short technical summary and product information.

This AC/DC wall mount adapter from GlobTek, Inc., model WR9HI500LCP-F(R6B), delivers 12W of power with a 24V output. Designed for ITE (Commercial) applications, it operates with an input voltage range of 90 to 264 VAC and features a fixed blade NEMA 1-15P input connector, suitable for North American regions.



The adapter boasts Level VI efficiency and CoC Tier 2 compliance, ensuring energy-conscious operation with a maximum no-load power consumption of 75mW. Its output is delivered via a standard 2.5mm I.D. x 5.5mm O.D. barrel plug with positive center polarization. The compact dimensions are 69.0mm x 28.8mm x 57.3mm, and it includes a 1.50m cord.



Safety and regulatory approvals include CB, cULus, EAC, LPS, PSE, UKRSepro, and VCCI, adhering to the 60950-1 standard. The operating temperature range is from 0°C to 50°C. This adapter is suitable for various commercial applications requiring a stable 24V DC power source.

WR9HI500LCP-F(R6B) Quick Information

Product Type: AC/DC Wall Adapter
Canonical Name: GlobTek, Inc. WR9HI500LCP-F(R6B) AC/DC Wall Mount Adapter
Subcategory: AC/DC Adapter

WR9HI500LCP-F(R6B) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WR9HI500LCP-F(R6B) Features

  • 12W AC/DC wall mount adapter with 24V output.
  • Level VI efficiency and CoC Tier 2 compliance.
  • NEMA 1-15P input connector for North America.
  • Compact dimensions: 69.0mm x 28.8mm x 57.3mm.
  • Approved by CB, cULus, EAC, LPS, PSE, UKRSepro, VCCI.

WR9HI500LCP-F(R6B) Applications

  • Provides 24V power for commercial IT equipment.
  • Powers low-power devices requiring 500mA supply.
  • Suitable for North American wall outlet use.
  • Used in fixed-blade AC adapter applications.

WR9HI500LCP-F(R6B) FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

90 to 264 VAC.

What is the output voltage and current?

24V at 500mA.

What is the power rating?

12W.

What is the operating temperature range?

0°C to 50°C.

What is the form factor and packaging?

Wall mount (Class II) adapter, bulk packaging.

What efficiency standard does it meet?

Level VI, CoC Tier 2.

What approvals does it have?

CB, cULus, EAC, LPS, PSE, UKRSepro, VCCI.
