| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

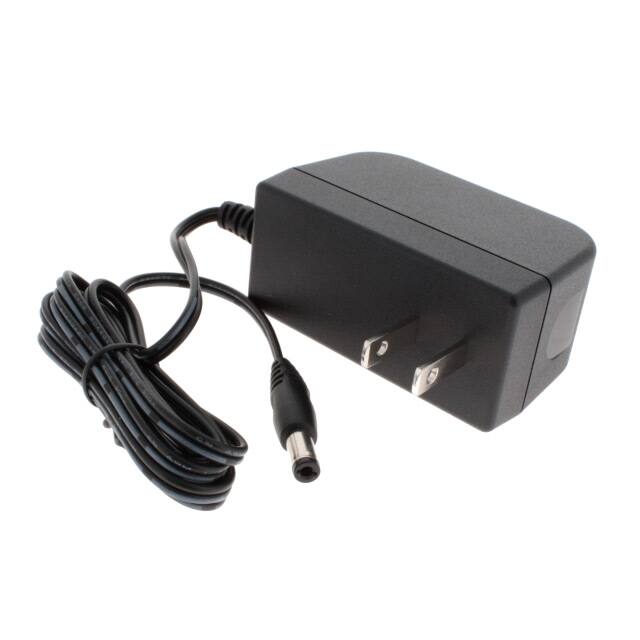

The GlobTek WR9HH1000LCP-F(R6B) is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 18V output at 1A, providing a total power of 18W. This adapter meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy efficiency.
The unit features a NEMA 1-15P input connector for North American outlets and a standard barrel plug output with positive center polarization. Its compact dimensions are 73.5mm x 35.0mm x 46.0mm, making it suitable for various installations. The operating temperature range is from 0°C to 40°C.
Compliance is certified by agencies including CB, cULus, EAC, LPS, PSE, UKRSepro, and VCCI, adhering to standard 60950-1. The adapter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
The adapter provides an 18VDC output at 1A.
This adapter has a power rating of 18W.
The input connector is a NEMA 1-15P.
The dimensions are 73.5mm in length, 35.0mm in width, and 46.0mm in height.
The adapter operates within a temperature range of 0°C to 40°C.
Yes, the adapter is RoHS3 compliant.
