| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

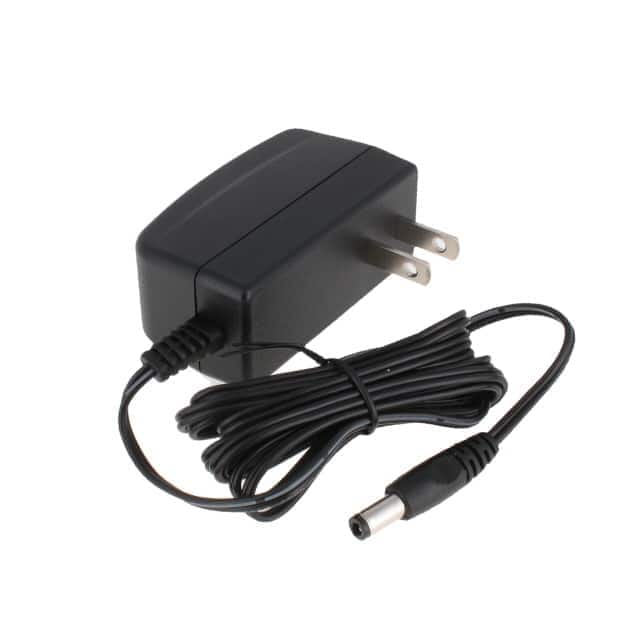

This AC/DC wall mount adapter from GlobTek, model WR9HG800CCPIMFR6B, delivers 12 watts of power with a 15V output at 800mA. Designed for North American regions, it utilizes a NEMA 1-15P input connector and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization.
The adapter operates within a temperature range of 0°C to 50°C and meets Level VI efficiency standards, along with CoC Tier 2 compliance. Its dimensions are 69.0mm x 28.8mm x 57.3mm, making it a compact wall mount unit classified as Class II.
Key specifications include a 1.50m cord length and compliance with medical standards such as 60601-1. Approval agencies include CB, cETLus, EAC, PSE, Ukraine, VCCI, and WEEE, indicating broad regulatory acceptance for various applications, particularly in the medical field.
The WR9HG800CCPIMFR6B adapter has an output voltage of 15V and an output current of 800mA.
The WR9HG800CCPIMFR6B adapter has a power rating of 12W.
The dimensions of the WR9HG800CCPIMFR6B adapter are 69.0mm x 28.8mm x 57.3mm.
The operating temperature range for the WR9HG800CCPIMFR6B adapter is 0°C to 50°C.
The WR9HG800CCPIMFR6B adapter uses a NEMA 1-15P input connector.
The output connector is a Barrel Plug with 2.5mm I.D. x 5.5mm O.D. x 11.0mm dimensions.
Yes, the WR9HG800CCPIMFR6B adapter is compliant with the 60601-1 standard for medical equipment.
