| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

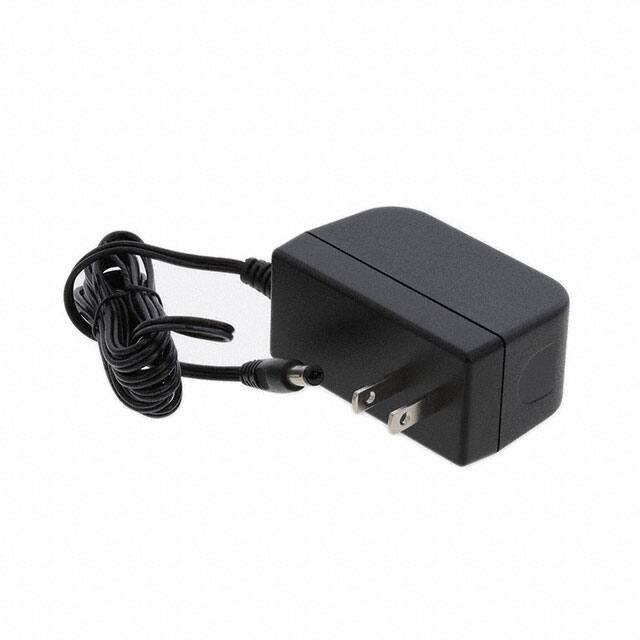

The GlobTek, Inc. WR9HG1200CCP-F(R6B) is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 15V DC output with a current rating of 1.2A, delivering a total power of 18W. This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 2 compliance, ensuring reduced energy consumption.
The unit features a NEMA 1-15P input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. Its compact dimensions (73.5mm x 35.0mm x 46.0mm) and wall mount (Class II) form factor make it suitable for various space-constrained designs. The operating temperature range is from 0°C to 40°C, and it consumes a maximum of 75mW at no load.
Safety and regulatory compliance are supported by multiple approval agencies including CB, cULus, EAC, LPS, PSE, UKRSepro, and VCCI, adhering to standards like IEC 60950-1. The adapter is RoHS3 compliant and has an MSL rating of 1.
The adapter provides a 15V DC output voltage and a maximum current of 1.2A.
This adapter has a power rating of 18W.
The adapter operates within a temperature range of 0°C to 40°C.
It uses a NEMA 1-15P input connector.
The adapter measures 73.5mm in length, 35.0mm in width, and 46.0mm in height.
