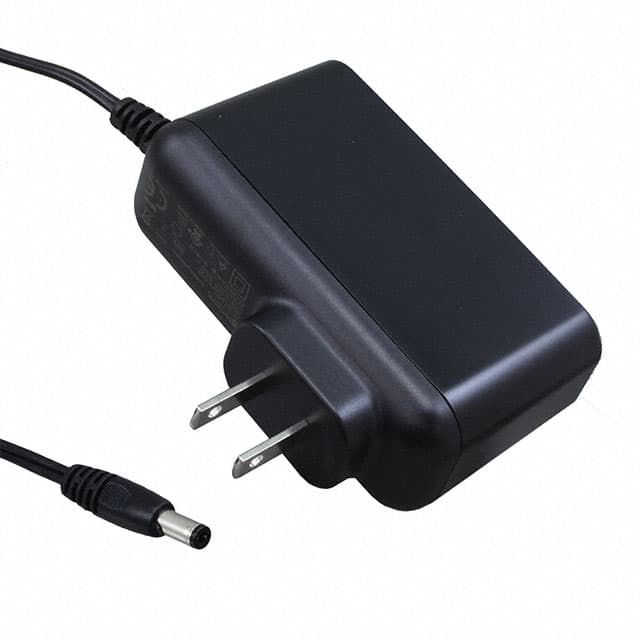

WR9HE3000LCP-F(R6B) The GlobTek WR9HE3000LCP-F(R6B) is a 36W AC/DC wall mount adapter providing a 12V output at 3A. It features a NEMA 1-15P input and a 5.5x2.5mm barrel output connector.
Mfr Part #:

WR9HE3000LCP-F(R6B)

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek WR9HE3000LCP-F(R6B) is a 36W AC/DC wall mount adapter providing a 12V output at 3A. It features a NEMA 1-15P input and a 5.5x2.5mm barrel output connector.
Stock on Request

WR9HE3000LCP-F(R6B) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

WR9HE3000LCP-F(R6B) Description

Short technical summary and product information.

This GlobTek WR9HE3000LCP-F(R6B) is a regulated, switchmode AC-DC power supply designed for wall-mounting applications. It delivers a stable 12.0V output at a maximum current of 3.0A, providing a total power of 36W. The adapter meets USA DOE Level VI efficiency standards and complies with Eco-design Directive 2009/125/EC, (EU) 2019/1782, ensuring energy efficiency.



The input rating is universal at 100-240V AC, 50/60Hz, with a fixed North American NEMA 1-15P plug. The output is delivered via a 1530 mm cord terminated with a female barrel connector measuring 5.5mm outer diameter, 2.5mm inner diameter, and 11mm length. The polarization is center positive, compliant with IEC 60417 symbol no. 5926.



Designed for ITE (Commercial) applications, this adapter operates within a temperature range of -5°C to 45°C. It has a low no-load power consumption of 75mW (Max). The unit is Class II double insulated and meets safety standard 60950-1. Approvals include CB, cULus, EAC, LPS, PSE, and VCCI.



The physical dimensions of the unit are 93.0mm in length, 33.0mm in width, and 78.7mm in height. It is specified as RoHS3 Compliant, with an MSL of 1 Unlimited, and REACH Unaffected.

WR9HE3000LCP-F(R6B) Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: GlobTek WR9HE3000LCP-F(R6B) AC/DC Wall Mount Power Supply
Subcategory: Wall Mount

WR9HE3000LCP-F(R6B) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WR9HE3000LCP-F(R6B) Features

  • 36W AC/DC wall mount power supply.
  • 12.0V output at 3.0A current.
  • Universal 100-240V AC input.
  • NEMA 1-15P fixed input connector.
  • 5.5mm OD x 2.5mm ID barrel output.

WR9HE3000LCP-F(R6B) Applications

  • Suitable for ITE commercial applications.
  • Designed for wall-mount installations.
  • Provides stable 12V power output.
  • Meets Level VI energy efficiency.

WR9HE3000LCP-F(R6B) FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the WR9HE3000LCP-F(R6B)?

The WR9HE3000LCP-F(R6B) provides an output voltage of 12.0V at a current of 3.0A.

What is the power rating of the WR9HE3000LCP-F(R6B) adapter?

The WR9HE3000LCP-F(R6B) adapter has a power rating of 36W.

What input voltage range does the WR9HE3000LCP-F(R6B) support?

The WR9HE3000LCP-F(R6B) supports a universal input voltage range of 100-240V AC.

What type of input connector does this GlobTek adapter use?

This GlobTek adapter uses a fixed NEMA 1-15P input connector for North America.

What are the dimensions of the WR9HE3000LCP-F(R6B) power supply?

The dimensions of the WR9HE3000LCP-F(R6B) are 93.0mm in length, 33.0mm in width, and 78.7mm in height.

What is the operating temperature range for the WR9HE3000LCP-F(R6B)?

The WR9HE3000LCP-F(R6B) operates within a temperature range of -5°C to 45°C.
