| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

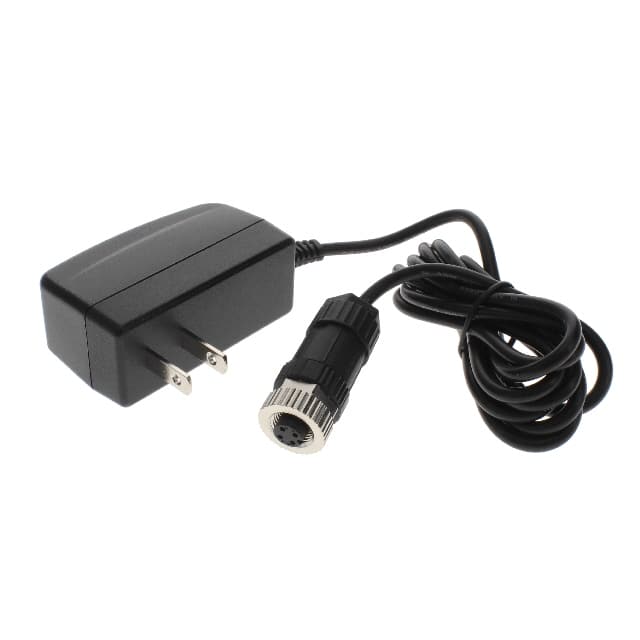

The GlobTek, Inc. WR9HE1000ALTW-F(R6B) is an AC/DC wall mount adapter with a power output of 12W and a voltage of 12V. This adapter meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy efficiency.
Designed for ITE (Commercial) applications, it features a fixed blade input type and a NEMA 1-15P input connector, suitable for North American regions. The adapter operates within a temperature range of 0°C to 50°C and has a low no-load power consumption of 75mW maximum.
Its dimensions are 69.0mm in length, 28.8mm in width, and 57.3mm in height. The WR9HE1000ALTW-F(R6B) has achieved various approvals, including CB, cULus, EAC, FCC, LPS, PSE, UKRSepro, and VCCI, indicating compliance with international safety and performance standards.
The power output is 12W.
The output voltage is 12V.
The operating temperature range is 0°C to 50°C.
The no-load power consumption is a maximum of 75mW.
It meets Level VI efficiency and CoC Tier 2 requirements.
It uses a NEMA 1-15P input connector.
It is utilized in North America.
