| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

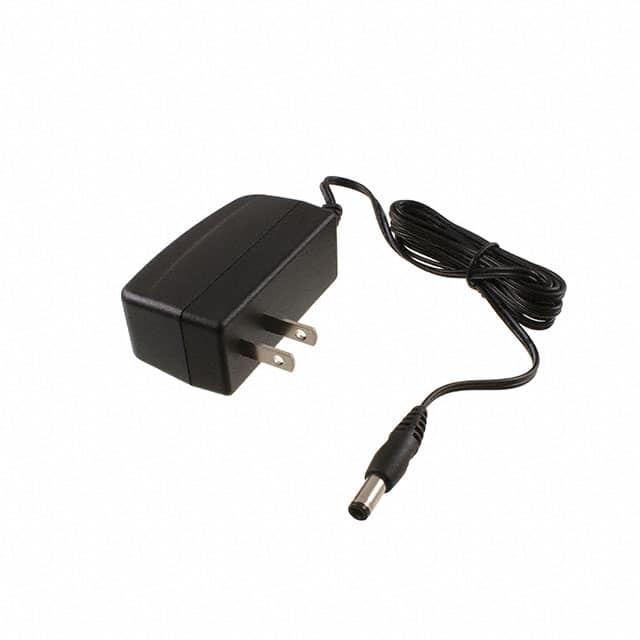

The GlobTek, Inc. WR9HD1330LCP-F(R6B) is a versatile AC/DC Wall Adapter designed for various applications. It delivers a stable 9V output with a maximum current of 1.33A, providing a total power of 12W. This adapter meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring optimal energy usage.
Designed with a fixed blade NEMA 1-15P input connector, it is suitable for North American regions. The output is delivered via a standard barrel plug with dimensions of 2.5mm I.D. x 5.5mm O.D. x 11.0mm and positive center polarization. The unit operates within a temperature range of 0°C to 50°C and features a compact form factor with dimensions of 69.0mm x 28.8mm x 57.3mm.
This adapter is compliant with standard number 60950-1 and has received approvals from agencies including CB, cULus, EAC, LPS, PSE, UKRSepro, and VCCI. It is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected, making it suitable for a wide range of commercial ITE applications.
The output voltage is 9V.
The maximum output current is 1.33A.
The total power output is 12W.
The operating temperature range is 0°C to 50°C.
It has a NEMA 1-15P input connector.
The output barrel connector has a 2.5mm I.D. x 5.5mm O.D. x 11.0mm size.
The efficiency rating is Level VI, CoC Tier 2.
