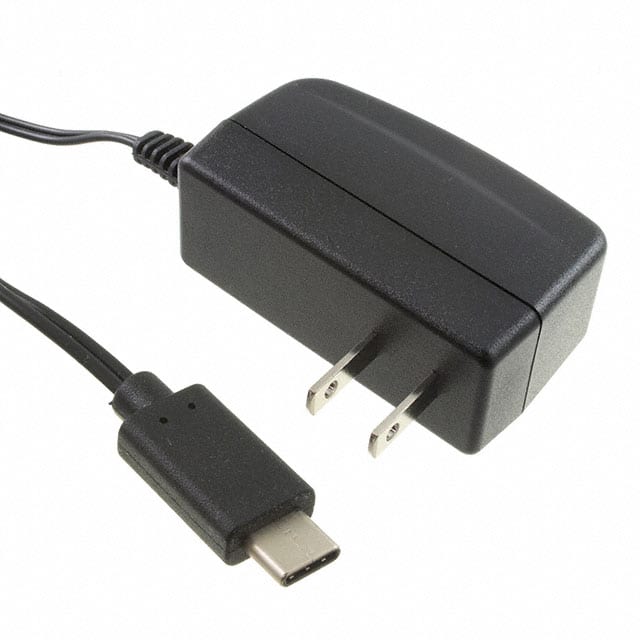

WR9HA2000USBCFMEDR6B The GlobTek WR9HA2000USBCFMEDR6B is a 10W AC/DC wall mount adapter with a 5V output and a NEMA 1-15P input connector. It operates from a 100-240V AC input and features a USB C output connector.
Mfr Part #:

WR9HA2000USBCFMEDR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek WR9HA2000USBCFMEDR6B is a 10W AC/DC wall mount adapter with a 5V output and a NEMA 1-15P input connector. It operates from a 100-240V AC input and features a USB C output connector.
Stock on Request

WR9HA2000USBCFMEDR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Frequency
Input Type
Input Voltage
Length
Medical Grade
Operating Temperature
Output Connector
Output Current
Output Power
Output Voltage
Power (Watts)
Region Utilized
SVHC Present
Standard Number
Voltage
Width
View Similar Products (0)

WR9HA2000USBCFMEDR6B Description

Short technical summary and product information.

This GlobTek WR9HA2000USBCFMEDR6B is an AC/DC wall mount adapter designed for various applications, including ITE (Commercial) and Medical use. It provides a stable 5V DC output at up to 2A, delivering a total of 10W of power.



The adapter accepts a universal input voltage range of 100-240V AC at 50-60Hz, making it suitable for global use. It features a NEMA 1-15P input plug for North America and a USB C output connector.



Designed for efficiency, this adapter meets Level VI standards. It operates within a temperature range of 0°C to 50°C and has dimensions of 69.0mm x 28.8mm x 57.3mm. The unit is Class II rated and includes a cord length of 1.53m (60.2").



Compliance is assured with approvals from agencies such as CB, cETLus, EAC, ETL, LPS, PSE, RCM, UKRSepro, and VCCI. It adheres to standards including 60335-1, 60601-1-11, 60601-1-2, and 62368-1.

WR9HA2000USBCFMEDR6B Quick Information

Product Type: AC/DC Wall Adapter
Canonical Name: GlobTek, Inc. WR9HA2000USBCFMEDR6B AC/DC Wall Mount Adapter
Subcategory: Wall Adapter

WR9HA2000USBCFMEDR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WR9HA2000USBCFMEDR6B Features

  • Provides 5V DC output at 2A.
  • Delivers a total of 10W power.
  • Universal 100-240V AC input.
  • Features NEMA 1-15P input and USB C output.
  • Meets Level VI efficiency standards.

WR9HA2000USBCFMEDR6B Applications

  • Suitable for ITE commercial equipment.
  • Designed for medical device applications.
  • Ideal for household appliances.
  • Powers various electronic devices.

WR9HA2000USBCFMEDR6B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the WR9HA2000USBCFMEDR6B?

100-240 VAC at 50-60 Hz.

What output voltage and current does this adapter provide?

5 VDC at 2 A (10 W).

What is the operating temperature range?

0°C to 50°C.

What are the physical dimensions of the adapter?

69.0mm x 28.8mm x 57.3mm (2.72" x 1.13" x 2.26").

What efficiency level does the WR9HA2000USBCFMEDR6B meet?

Level VI and CoC Tier 2.

What safety approvals does this adapter have?

CB, cETLus, EAC, ETL, LPS, PSE, RCM, UKRSepro, VCCI.

What applications is this adapter suitable for?

Household appliances, ITE (commercial), and medical equipment.
