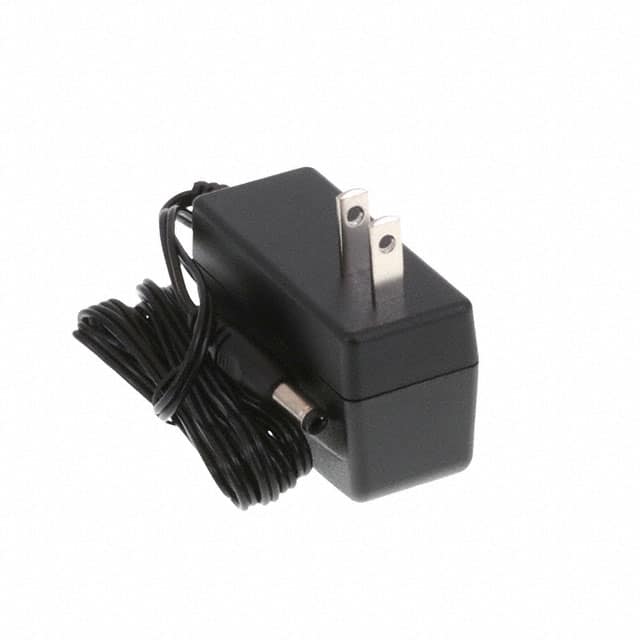

This GlobTek AC/DC power supply, part number WR9HA2000LCPMFR6B, is a wall-mountable adapter designed for various applications including household appliances and ITE commercial equipment. It operates with an input voltage range of 100-240V AC at 50-60Hz, suitable for North American regions.
The adapter delivers a stable 5.0V DC output at a maximum current of 2.0A, providing a total power of 10.00W. The output is delivered through a standard 2.5mm inner diameter by 5.5mm outer diameter barrel plug with a positive center polarization. The unit has a cord length of 1.50 meters (59 inches).
Designed for ease of use, it features a fixed blade input connector (NEMA 1-15P) and a Class II wall mount form factor. The operating temperature range is from 0°C to 50°C. The adapter meets efficiency Level VI standards and is compliant with various safety standards including IEC 60335-1, IEC 60601-1-11, IEC 60601-1-2, and IEC 62368-1. It has received approvals from multiple agencies such as CB, cETLus, EAC, ETL, LPS, PSE, RCM, UKRSepro, and VCCI.
The input voltage range is 100-240 VAC at 50-60Hz.
The output is 5.0V at 2.0A, providing 10W of power.
It uses a barrel plug with 2.5mm I.D. and 5.5mm O.D., 11.0mm length, with positive center polarity.
The operating temperature range is 0°C to 50°C.
It meets Level VI efficiency standards.
It complies with standards 60335-1, 60601-1-11, 60601-1-2, and 62368-1.
