| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

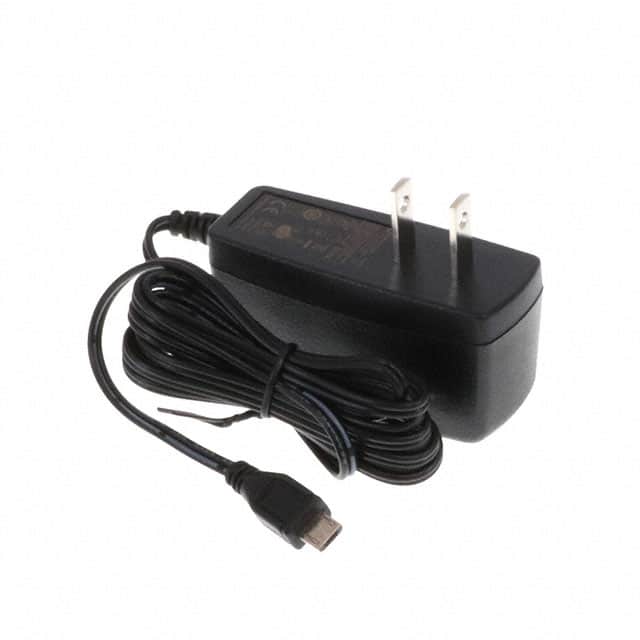

This AC/DC wall mount adapter from GlobTek, Inc., model WR9HA1200MICB-F(R6B), is designed for commercial ITE applications. It delivers a stable 5V output with a maximum current of 1.2A, providing a total power of 6W. The adapter operates with a wide input voltage range of 90-264 VAC and features a fixed blade input connector (NEMA 1-15P) and a USB Micro output connector.
Designed for efficiency, it meets Level VI standards and has a low no-load power consumption of 75mW maximum. The operating temperature range is from 0°C to 40°C. Its compact dimensions are 66.5mm x 25.5mm x 51.3mm, making it suitable for various space-constrained applications. The adapter includes a 1.50m cord and complies with standard 60950-1.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. Approval agencies include CB, cULus, EAC, LPS, PSE, UKRSepro, and VCCI, ensuring broad market acceptance.
The WR9HA1200MICB-F(R6B) adapter provides a 5V output voltage and a maximum output current of 1.2A.
The adapter has a power rating of 6W.
The adapter accepts an input voltage range of 90-264 VAC.
This adapter meets Level VI efficiency standards.
The dimensions are 66.5mm in length, 25.5mm in width, and 51.3mm in height.
The adapter operates within a temperature range of 0°C to 40°C.
It complies with standard 60950-1, RoHS3, and is REACH Unaffected.
