| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

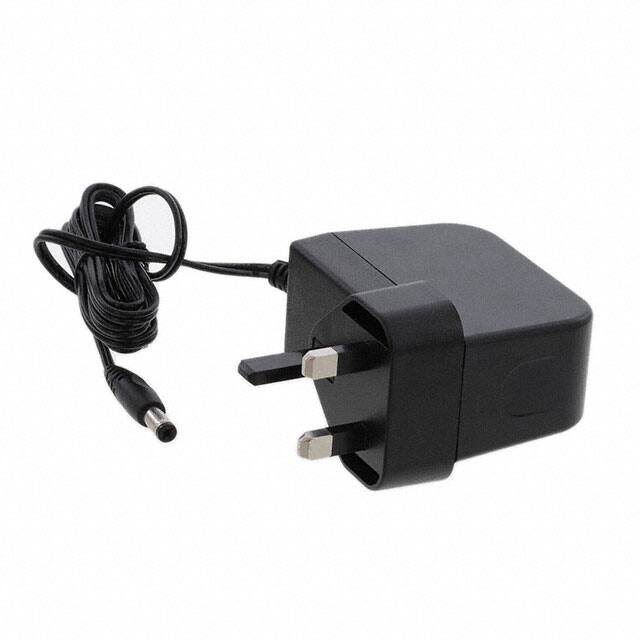

This GlobTek WR95E2000CCP-F(R6B) is a regulated switchmode AC-DC power supply designed for ICT/ITE applications. It operates with an input voltage range of 100-240V AC at 50-60Hz and delivers a stable 12V DC output at 2A, totaling 24W of power.
The adapter meets USA DOE Level VI and Eco-design Directive 2009/125/EC efficiency standards, ensuring minimal energy waste. It features a fixed blade UK input connector (BS 1363) and a 1.5-meter cord with a 5.5mm x 2.1mm barrel output plug, featuring positive center polarization.
Designed for wall mounting as a Class II device, it has dimensions of 73.5mm x 49.9mm x 87.7mm. The operating temperature range is 0°C to 40°C. Approvals include CE, EAC, LPS, and UKRSepro, with RoHS3 compliance and Moisture Sensitivity Level 1.
Key specifications include a low no-load power consumption of 75mW maximum. The part number is WR95E2000CCP-F(R6B) with a DK Part Number of 1939-1995-ND.
The WR95E2000CCP-F(R6B) provides an output voltage of 12V DC at a current of 2A.
This adapter has a total power output of 24W.
The adapter accepts an input voltage range of 100-240V AC at a frequency of 50-60Hz.
The adapter has an efficiency rating of Level VI.
It features a fixed blade UK input connector (BS 1363) and a 5.5mm x 2.1mm barrel output connector.
The operating temperature range is from 0°C to 40°C.
The RoHS status is RoHS3 Compliant.
