| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

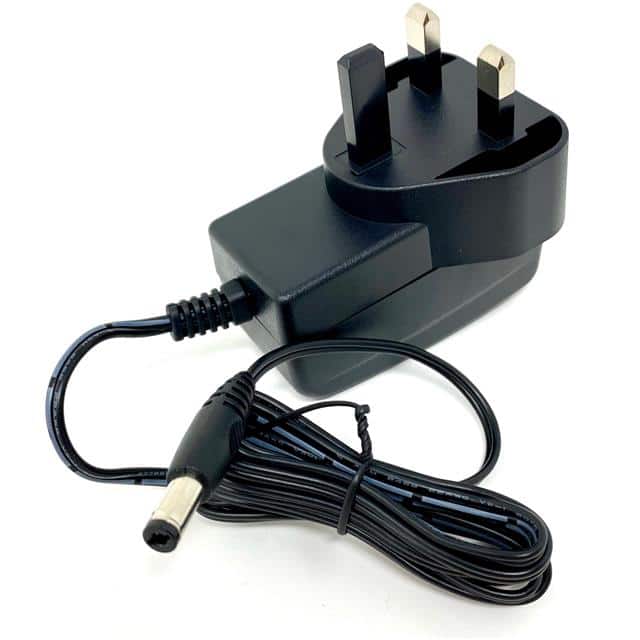

This GlobTek, Inc. WR95E1000CCPIMFR6B is an AC/DC wall mount adapter designed for reliable power conversion. It delivers a stable 12V output with a 1A current, totaling 12W of power.
The adapter features an input connector compatible with BS 1363 and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. It operates within a temperature range of 0°C to 50°C and is designed in a compact wall mount form factor (Class II).
Compliance is met with Level VI, CoC Tier 2 efficiency ratings and approval from agencies including CB, CE, EAC, UKCA, Ukraine, VCCI, and WEEE. The unit is specifically approved for medical applications and adheres to the 60601-1 standard.
Dimensions are 69.0mm in length, 49.0mm in width, and 31.8mm in height. The cord length is 59 inches (1.50m).
The WR95E1000CCPIMFR6B adapter has an output voltage of 12V and a current rating of 1A.
The power rating of the WR95E1000CCPIMFR6B is 12W.
The adapter operates within a temperature range of 0°C to 50°C.
The adapter uses a BS 1363 input connector.
The dimensions are 69.0mm in length, 49.0mm in width, and 31.8mm in height.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
