| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
441 pcs
|
441 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

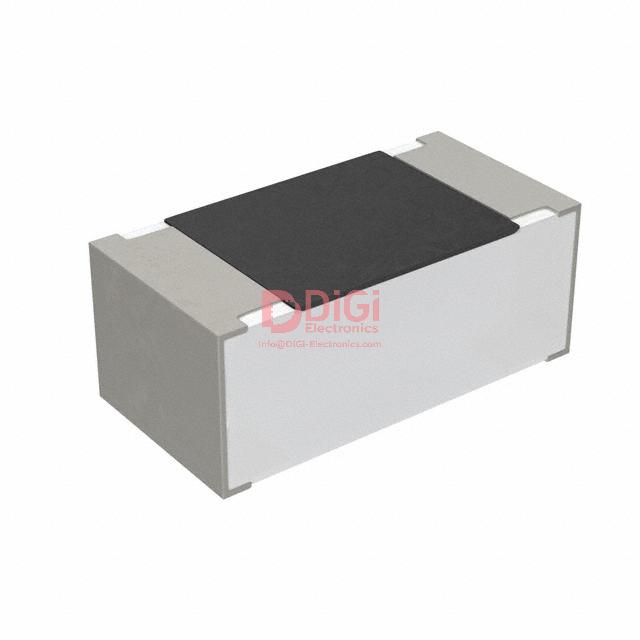

This Walsin Technology WR08X4R7 JTL is a thick film chip resistor designed for surface mount applications. It features a resistance value of 4.7 Ohms with a tight tolerance of ±5%, making it suitable for general-purpose electronic circuits.
The resistor has a power rating of 1/8W and can operate across a wide temperature range from -55°C to 155°C. Its compact 0805 (2012 Metric) package size, measuring 2.00mm in length and 1.25mm in width, allows for high-density circuit board designs.
The component is constructed with a high-grade ceramic body and features tin-lead free end terminations for ease of soldering. Its thick film composition ensures reliability and stability in various applications, including consumer electronics and telecommunications.
Key electrical characteristics include a temperature coefficient of -200/+400ppm/°C. The component has 2 terminations and is suitable for standard surface mount assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 4.7 Ohms.
The tolerance is ±5%.
The power rating is 1/8W.
The operating temperature range is -55°C to 155°C.
The 0805 package has dimensions of 2.00mm in length and 1.25mm in width.
The temperature coefficient is -200/+400ppm/°C.
