| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,395 pcs
|
8395 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Halogen Free | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

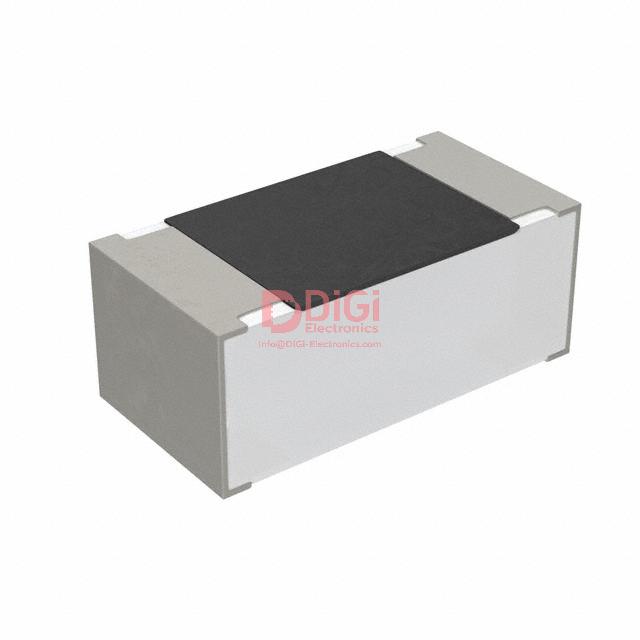

This Walsin Technology WR08X2R7 JTL is a surface mount chip resistor designed for general-purpose applications. It features a thick film composition and an 0805 package size.
The resistor offers a resistance value of 2.7 Ohms with a tolerance of ±5%. Its power rating is 1/8W, and it operates within a temperature range of -55°C to 155°C. The component is constructed with a high-grade ceramic body and Tin (lead-free) alloy terminations for ease of soldering.
Key electrical specifications include a maximum operating voltage of 150V and a maximum overload voltage of 300V. The temperature coefficient is rated at -200/+400ppm/°C. This component is suitable for consumer electrical equipment, EDP, computer applications, and telecom applications.
It is supplied in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.65mm. The resistor has 2 terminations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.7 Ohms.
The tolerance is ±5%.
The power rating is 1/8W (0.125W).
The operating temperature range is -55°C to 155°C.
The package size is 0805 (2012 Metric).
The temperature coefficient is -200/+400ppm/°C.
