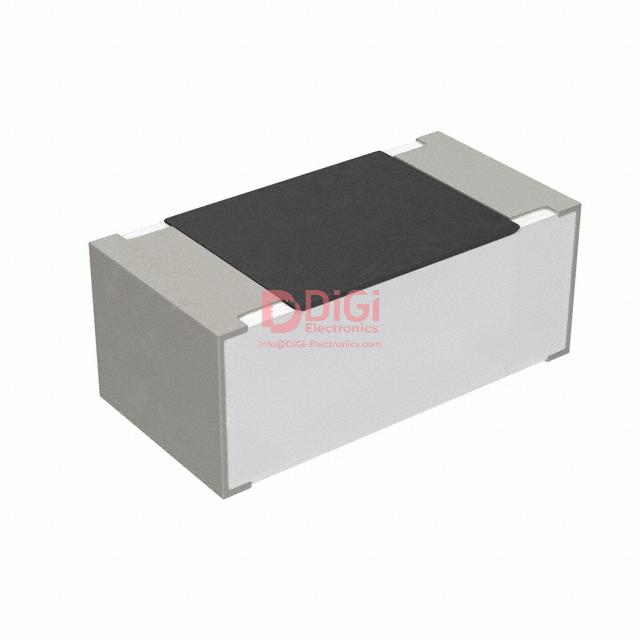

WR08X180 JTL The Walsin Technology WR08X180 JTL is a thick film chip resistor with 18 Ohms resistance and a ±5% tolerance. It is rated for 1/8W power and comes in an 0805 package.
Mfr Part #:

WR08X180 JTL

Available from 1 distributors
Mfr Name: Walsin Technology
Walsin Technology
The Walsin Technology WR08X180 JTL is a thick film chip resistor with 18 Ohms resistance and a ±5% tolerance. It is rated for 1/8W power and comes in an 0805 package.
✓ Total Stock: 100,000 pcs
$ Price Range: $0.02

WR08X180 JTL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
100,000 pcs
On Request
100000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WR08X180 JTL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Halogen Free
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

WR08X180 JTL Description

Short technical summary and product information.

The Walsin Technology WR08X180 JTL is a surface-mount chip resistor designed for general-purpose applications. It features a resistance value of 18 Ohms with a tight tolerance of ±5%. The component is rated for a power dissipation of 0.125W (1/8W) and operates within a temperature range of -55°C to 155°C.



Constructed with a thick film composition, this resistor is built on a ceramic body. Its dimensions are 2.00mm in length and 1.25mm in width, fitting the standard 0805 (2012 Metric) package size. The operating temperature range ensures reliability in various environmental conditions. The resistor is also specified as Halogen free.



This component is suitable for applications in consumer electrical equipment, EDP, computer applications, and telecom. Its robust construction and specified performance characteristics make it a reliable choice for many electronic designs.

WR08X180 JTL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: WR
Canonical Name: Walsin Technology WR08X180 JTL Thick Film Chip Resistor, 18 Ohm, 5% Tolerance, 1/8W, 0805 Package
Subcategory: Surface Mount

WR08X180 JTL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WR08X180 JTL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

WR08X180 JTL Features

  • 18 Ohms resistance with ±5% tolerance.
  • Rated for 1/8W power dissipation.
  • Operates from -55°C to 155°C.
  • Standard 0805 (2012 Metric) package.
  • Thick film composition for reliability.

WR08X180 JTL Applications

  • Suitable for consumer electronics.
  • Used in EDP and computer applications.
  • Applicable for telecom systems.
  • General purpose circuit applications.

WR08X180 JTL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the WR08X180 JTL chip resistor?

The resistance value is 18 Ohms.

What is the tolerance of the WR08X180 JTL resistor?

The tolerance is ±5%.

What is the power rating for the WR08X180 JTL chip resistor?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for the WR08X180 JTL?

The operating temperature range is -55°C to 155°C.

What are the dimensions of the WR08X180 JTL chip resistor?

The dimensions are 2.00mm in length and 1.25mm in width.

What package type is the WR08X180 JTL resistor?

It is an 0805 (2012 Metric) package for surface mounting.
