| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,390 pcs
|
4390 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
370 pcs
|
370 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Halogen Free | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

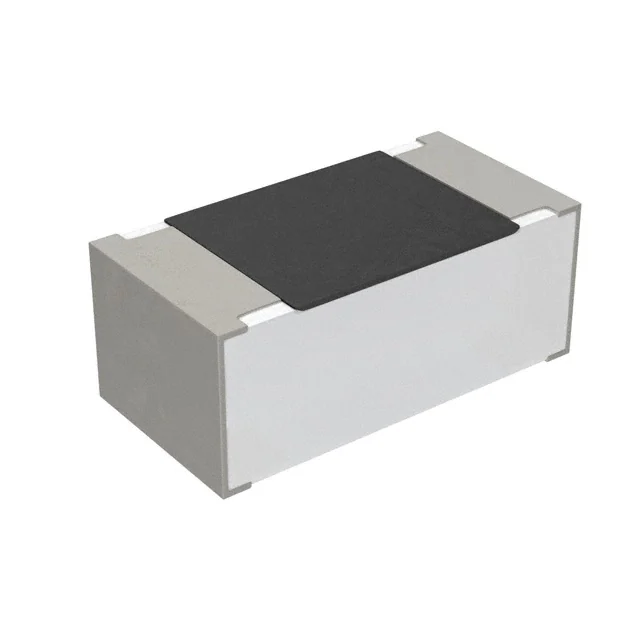

This Walsin Technology WR08X1001FTL is a surface mount chip resistor from the WR series, designed for general-purpose applications. It offers a resistance value of 1 kΩ with a tight tolerance of ±1%. The component is rated for 1/8W of power dissipation at 70°C and has a maximum operating voltage of 50V.
The resistor is constructed using thick film technology on a ceramic body. Its operating temperature range is -55°C to 155°C, with a temperature coefficient of ±100ppm/°C. The package size is 0805 (2012 Metric), with dimensions of 2.00mm x 1.25mm and a height of 0.65mm.
Applications for this resistor include consumer electrical equipment, EDP and computer applications, and telecom infrastructure. It is RoHS 2 compliant and halogen-free, making it suitable for environmentally conscious designs. The terminations are tin-lead free alloy for ease of soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1 kΩ.
The tolerance is ±1%.
The power rating is 1/8W at 70°C.
The operating temperature range is -55°C to 155°C.
The dimensions are 2.00mm x 1.25mm.
Yes, it is RoHS3 Compliant.
The standard package quantity is 5000 units.
