| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48,555 pcs
|
48555 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

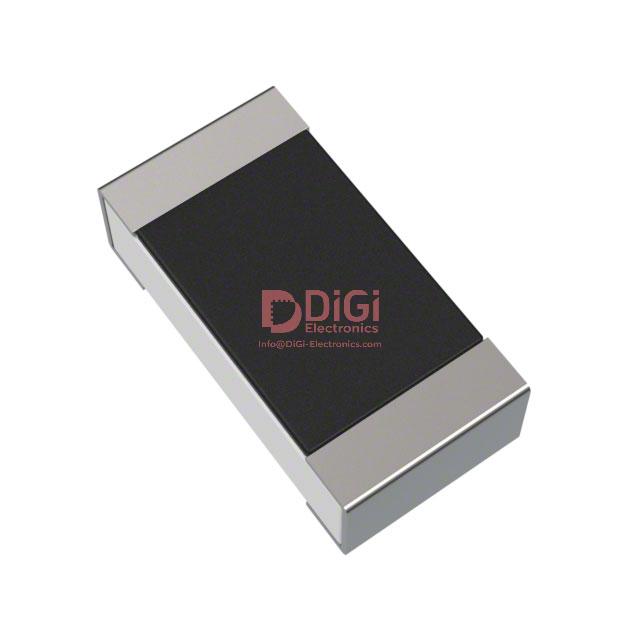

This Walsin Technology WR06X470 JTL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 47 Ohms with a tight tolerance of ±5%. The power rating is 1/10W, making it suitable for various electronic circuits.
The resistor operates within a wide temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. Its thick film composition ensures reliability and stability. The component is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.60mm.
With two terminations, this component is designed for standard surface mount assembly processes. It is compliant with RoHS3 standards and Halogen-free, making it suitable for environmentally conscious designs. The MSL rating is 1, indicating unlimited usability under typical conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 47 ohms.
The tolerance is ±5%.
The power rating is 0.1W, 1/10W.
The operating temperature range is -55°C to 155°C.
It uses a 0603 (1608 metric) package.
Yes, it is RoHS3 compliant.
Yes, it is halogen free.
