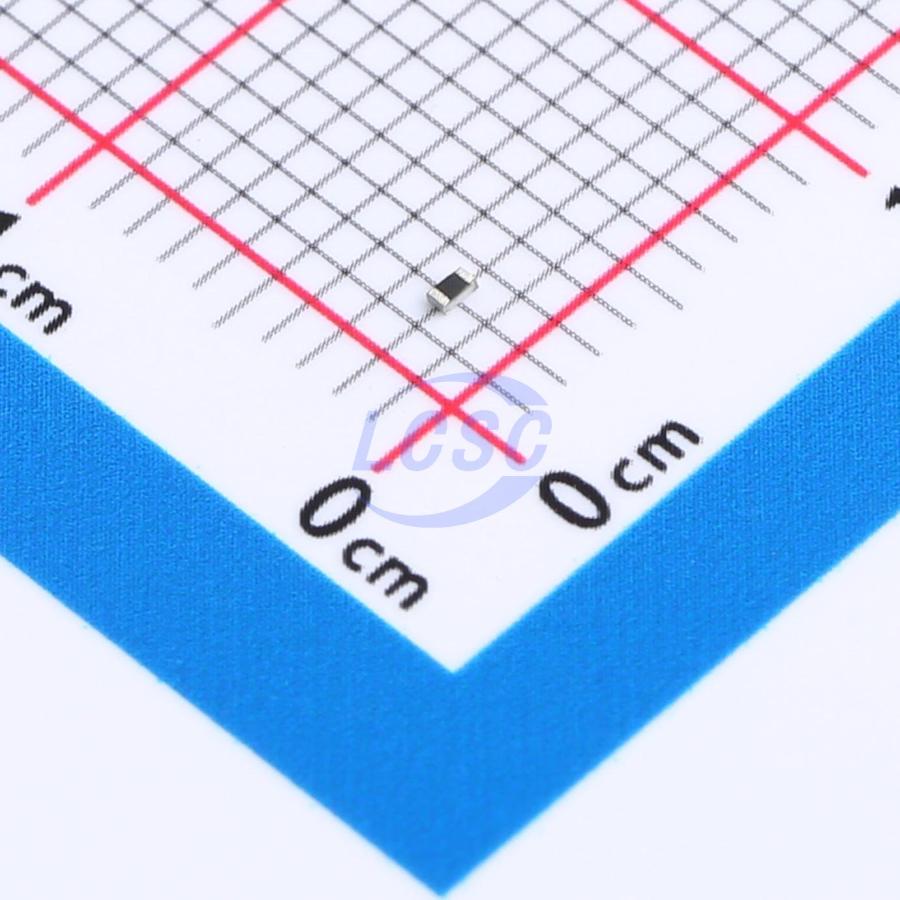

This Walsin Technology WR04X9531FTL is a surface mount chip resistor from the WR series, constructed with thick film technology. It offers a precise resistance value of 9.53 kΩ with a tight tolerance of ±1%. The component is designed for a power rating of 1/16W and features a temperature coefficient of ±100ppm/°C.
The resistor operates across a wide temperature range, from -55°C to 155°C, making it suitable for various environmental conditions. Its compact 0402 (1005 Metric) package size and surface mount capability facilitate high-density circuit designs. The construction utilizes a high-grade ceramic body with Tin (lead-free) alloy terminations for ease of soldering.
Key features include high reliability and stability, contributing to reduced size and lower assembly costs in final equipment. Applications include consumer electrical equipment, EDP, computer applications, and telecom infrastructure. The resistor is RoHS 2 compliant with exemption 7C-I and is Halogen free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 9.53 kΩ.
The tolerance is ±1%.
The power rating is 1/16W (0.063W).
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
It comes in a 0402 (1005 Metric) package.
