| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34,678 pcs
|
34678 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Halogen Free | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

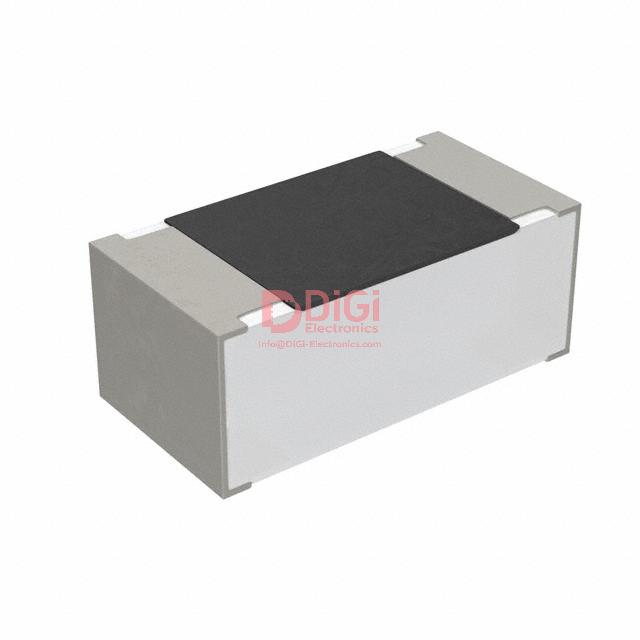

The Walsin Technology WR04X564 JTL is a surface mount thick film chip resistor. It offers a resistance value of 560 kΩ with a tolerance of ±5% and a power rating of 1/16W. The operating temperature range for this component is -55°C to 155°C.
Constructed with a high-grade ceramic body and internal metal electrodes, this resistor features a resistive paste adjusted for precise resistance values, trimmed by laser cutting. The end terminations are coated with a lead-free tin alloy for ease of soldering. Its compact 0402 package size (1.00mm x 0.50mm) makes it suitable for applications where space is limited.
This component is suitable for consumer electrical equipment, EDP, computer applications, and telecom applications. It is RoHS 2 compliant with exemption 7C-I and Halogen free, and has an MSL rating of 1.
The WR04X564 JTL has a maximum operating voltage of 50V and a maximum overload voltage of 100V. The temperature coefficient is ±100ppm/°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 560 kΩ.
The tolerance is ±5%.
The power rating is 1/16W.
The operating temperature range is -55°C to 155°C.
The dimensions are 1.00mm in length and 0.50mm in width.
Yes, it is RoHS3 Compliant.
The MSL is 1.
