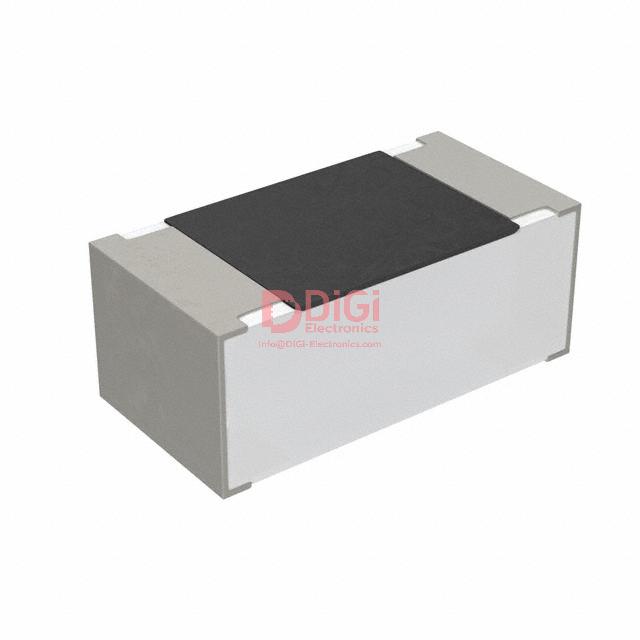

WR04X562JTL The Walsin Technology WR04X562JTL is a surface mount chip resistor with a resistance of 5.6 kOhms and a tolerance of ±5%. It features a power rating of 1/16W.
Mfr Part #:

WR04X562JTL

Available from 1 distributors
Mfr Name: Walsin Technology
Walsin Technology
The Walsin Technology WR04X562JTL is a surface mount chip resistor with a resistance of 5.6 kOhms and a tolerance of ±5%. It features a power rating of 1/16W.
✓ Total Stock: 1,361 pcs
$ Price Range: $0.00

WR04X562JTL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,361 pcs
On Request
1361 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WR04X562JTL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Duration
Mounting Type
Number of Terminations
Operating Temperature
Power Rating
Resistance
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

WR04X562JTL Description

Short technical summary and product information.

The Walsin Technology WR04X562JTL is a surface mount chip resistor designed for various electronic applications. It offers a resistance value of 5.6 kOhms with a tight tolerance of ±5%, ensuring precise circuit performance.



This resistor has a power rating of 0.063W (1/16W) and is constructed using thick film technology. It operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±100ppm/°C.



The WR04X562JTL comes in a compact 0402 (1005 Metric) package, measuring 1.00mm x 0.50mm with a maximum height of 0.40mm. It is suitable for surface mounting and features two terminations. The component is supplied on tape and reel for automated assembly processes.

WR04X562JTL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: WR
Canonical Name: Walsin Technology WR04X562JTL Chip Resistor
Subcategory: Surface Mount

WR04X562JTL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WR04X562JTL Estimated Pricing

Qty Low High
1+ $0.00 $0.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

WR04X562JTL Features

  • 5.6 kOhms resistance value.
  • ±5% tolerance for precision.
  • 0.063W (1/16W) power rating.
  • Compact 0402 (1005 Metric) package.
  • Thick film construction.

WR04X562JTL Applications

  • Suitable for general purpose circuits.
  • Ideal for high-density PCBs.
  • Used in consumer electronics.
  • Applicable in industrial controls.

WR04X562JTL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the WR04X562JTL?

5.6 kOhms.

What is the tolerance of the WR04X562JTL?

±5%.

What is the power rating of the WR04X562JTL?

0.063W (1/16W).

What is the temperature coefficient of the WR04X562JTL?

±100ppm/°C.

What is the package size of the WR04X562JTL?

0402 (1005 Metric) surface mount package.

What is the operating temperature range of the WR04X562JTL?

-55°C to 155°C.

What is the resistor composition of the WR04X562JTL?

Thick film.
