| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Halogen Free | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

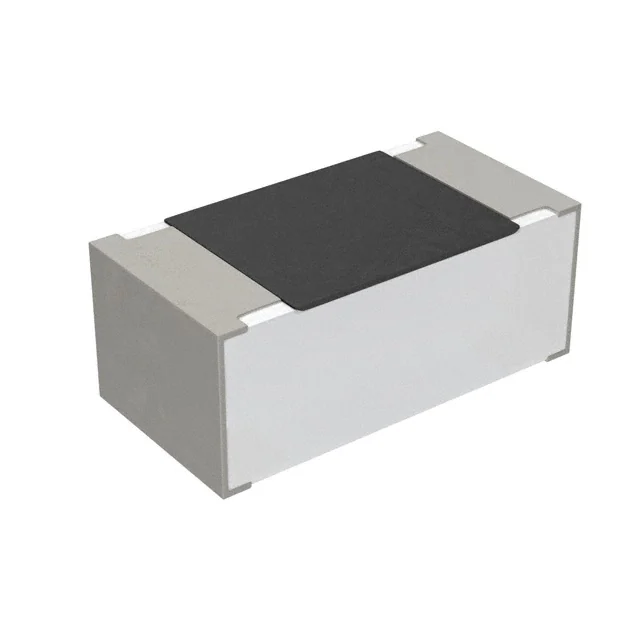

The Walsin Technology WR04X3653FTL is a surface mount chip resistor from the WR series. It features a resistance value of 365 kΩ with a tight tolerance of ±1% and a power rating of 0.063W (1/16W). This component operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C.
The resistor is constructed with thick film technology and comes in a compact 0402 (1005 Metric) package, measuring 1.00mm in length and 0.50mm in width, with a height of 0.40mm. It has two terminations, making it suitable for standard surface mount assembly processes.
This component is compliant with RoHS3 standards and is halogen-free. Its applications include consumer electrical equipment, EDP, computer applications, and telecom applications, where reliable performance in a small form factor is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 365 kΩ.
The tolerance is ±1%.
The power rating is 0.063W, or 1/16W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±100ppm/°C.
The package size is 0402 (1005 Metric).
Yes, it is RoHS3 Compliant.
