| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

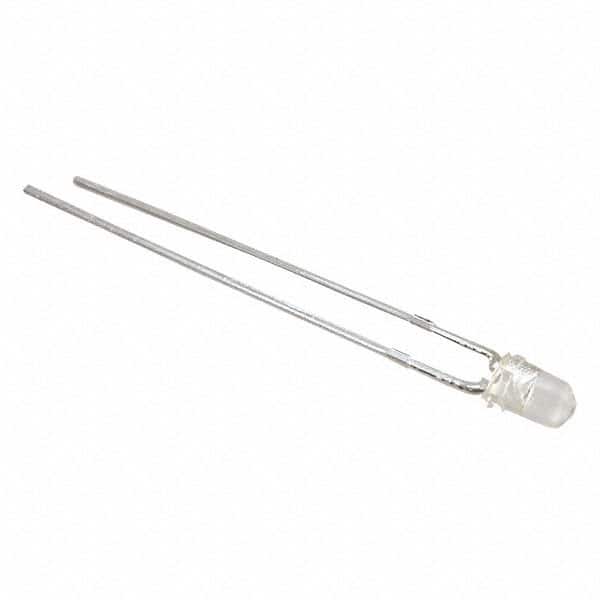

This Kingbright WP7104SRC/D is a discrete LED designed for indication purposes. It features a clear, round, domed top lens with a T-1 size, measuring 2.90mm in diameter and a maximum height of 5.90mm. The LED emits a red light with a peak wavelength of 660nm and a dominant wavelength of 640nm. Its typical forward voltage is 1.85V, and it is rated for a test current of 20mA, producing a typical luminous intensity of 800mcd. The viewing angle is 34 degrees.
Designed for through-hole mounting, this component comes in a radial package. The LED is RoHS3 compliant. Its standard configuration and clear lens make it suitable for various general-purpose indicator applications where a red light output is required.
This part is identified by manufacturer part number WP7104SRC/D. It is also known by distributor part number 754-1253-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 1.85V.
It has a T-1 size, round with domed top lens, and is mounted through hole in a radial package.
The luminous intensity is 800mcd.
The viewing angle is 34 degrees.
It is marked as RoHS3 compliant, but the compliance status is unverified.
